Fluke 117 User Manual

114, 115, and 117
Users Manual
14

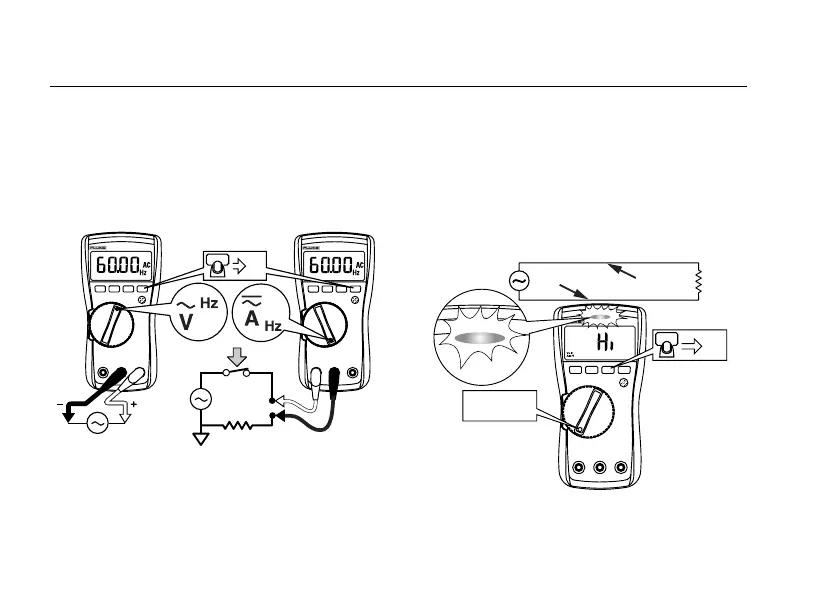

Measuring Frequency (115 & 117 only)
XWWarning
To avoid electrical shock, disregard the bar
graph for frequencies >1 kHz. If the
frequency of the measured signal is >1 kHz,
the bar graph and Z are unspecified.
VoltAlert
AC Voltage Frequency AC Current Frequency
Hz
edy09f.eps
The Meter measures the frequency of a signal by counting
the number of times the signal crosses a trigger level each
second. The trigger level is 0 V, 0 A for all ranges.
Press g to turn the frequency measurement function
on and off. Frequency works with ac functions only.
In frequency, the bar graph and range annunciator indicate
the ac voltage or current present.
Select progressively lower ranges using manual ranging
for a stable reading.
Detecting AC Voltage Presence (117 only)
VoltAlert
VoltAlert
Lo
Neutral
Hot
RANGE
VoltAlert
edy13f.eps

Fluke 117 Specifications

General

Diode test	Yes
Product type	Digital multimeter
Product color	Black, Yellow
Measuring category	CAT III 600V
Placement supported	Handheld multimeter
Battery type	9V
Power source	Battery
Battery technology	Alkaline
Number of batteries supported	1
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Depth	46 mm
Width	84 mm
Height	167 mm
Weight	550 g
