Fluke 117 User Manual

114, 115, and 117
Users Manual
4

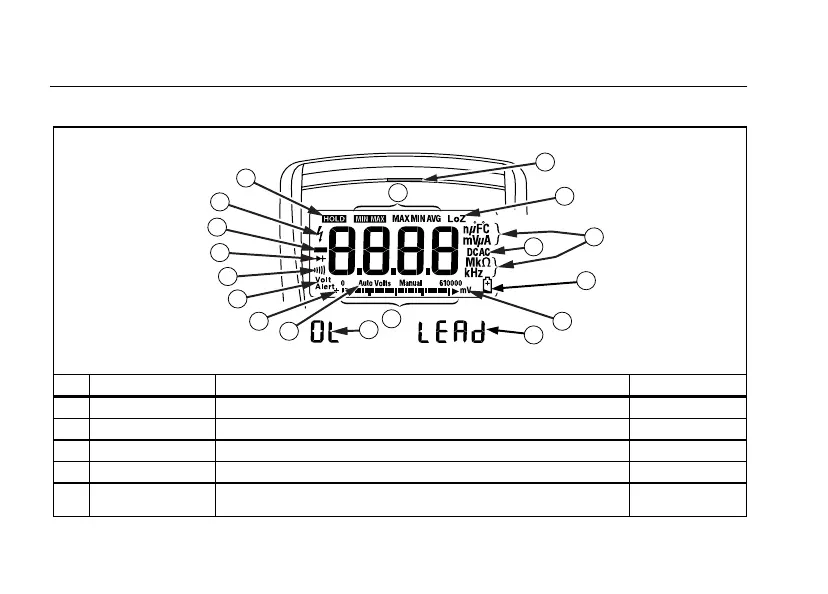

Display
VoltAlert
11
7
17
18
12
13
14
9
6
5
4
3
2
1
16
15
8
10
edy02f.eps
No. Symbol Meaning Model
A w The Meter is in the VoltAlert™ non-contact voltage detect mode.
117
B s The Meter function is set to Continuity.
114, 115, & 117
C R The Meter function is set to Diode Test
115 & 117
D O Input is a negative value.
114, 115, & 117
E
Y
X Unsafe voltage. Measured input voltage ≥30 V, or voltage
overload condition (OL).
114, 115, & 117

Fluke 117 Specifications

General

Diode test	Yes
Product type	Digital multimeter
Product color	Black, Yellow
Measuring category	CAT III 600V
Placement supported	Handheld multimeter
Battery type	9V
Power source	Battery
Battery technology	Alkaline
Number of batteries supported	1
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Depth	46 mm
Width	84 mm
Height	167 mm
Weight	550 g
