114, 115, and 117
Users Manual
6

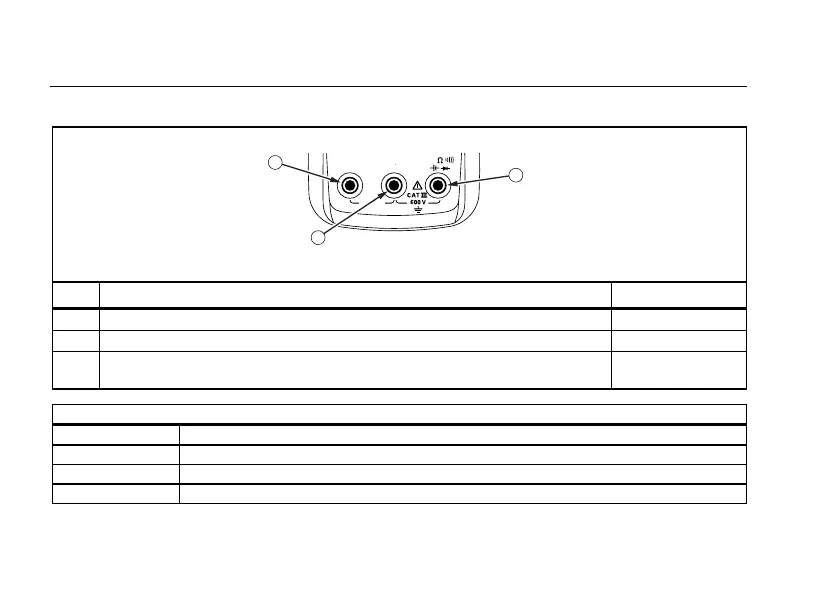

Terminals
10 A
FUSED
COM
V
A
1
2
3
edy01f.eps
No. Description
Model
A Input terminal for measuring ac and dc current to 10 A. 115 & 117
B Common (return) terminal for all measurements. 114, 115, & 117
C
Input terminal for measuring voltage, continuity, resistance, capacitance,
frequency and testing diodes.
114, 115, & 117
Error Messages
bAtt Battery must be replaced before the Meter will operate.
CAL Err Calibration required. Meter calibration is required before the Meter will operate.
EEPr Err Internal error. The Meter must be repaired before it will operate.
F11 Err Internal error. The Meter must be repaired before it will operate.
