Fluke 117 User Manual

114, 115, and 117
Users Manual
10

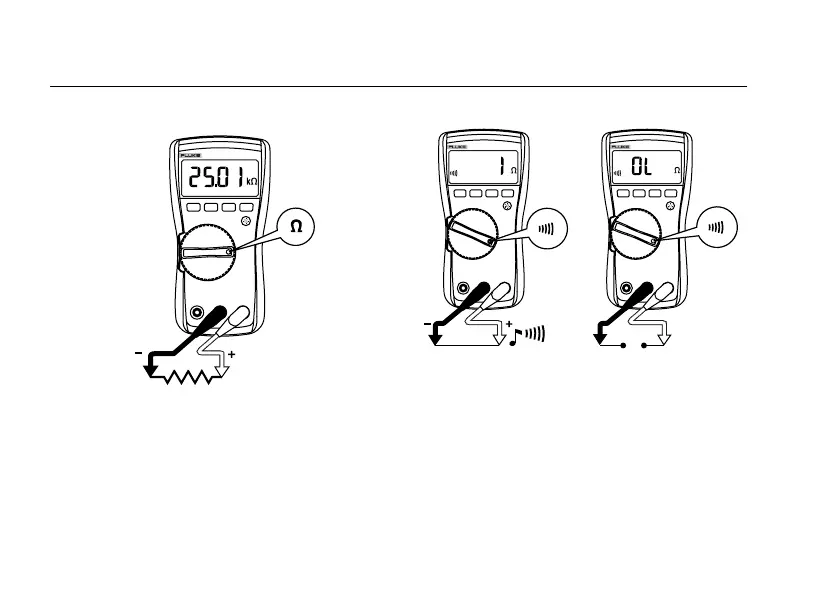

Measuring Resistance
edy04f.eps
XWWarning
To avoid electric shock, injury, or
damage to the Meter, disconnect
circuit power and discharge all high-
voltage capacitors before testing
resistance, continuity, diodes, or
capacitance.
Testing for Continuity
edy06f.eps
Note
The continuity function works best as a fast,
convenient method to check for opens and
shorts. For maximum accuracy in making
resistance measurements, use the Meter’s
resistance (e) function.

Fluke 117 Specifications

General

Diode test	Yes
Product type	Digital multimeter
Product color	Black, Yellow
Measuring category	CAT III 600V
Placement supported	Handheld multimeter
Battery type	9V
Power source	Battery
Battery technology	Alkaline
Number of batteries supported	1
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Depth	46 mm
Width	84 mm
Height	167 mm
Weight	550 g
