Fluke 117 User Manual

True-rms Multimeters
Making Basic Measurements
13

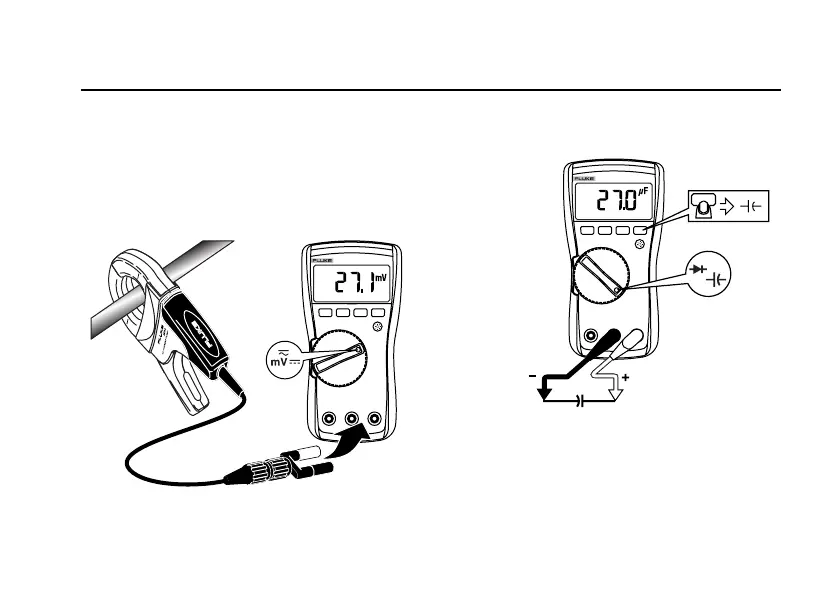

Measuring Current above 10 Amps
The millivolt and voltage function of the Meter can be used
with an optional mV/A output Current Probe to measure
currents that exceed the rating of the Meter. Make sure the
Meter has the correct function selected, AC or DC, for your
current probe. Refer to a Fluke catalog or contact your
local Fluke representative for compatible current clamps.
edy14f.eps
Measuring Capacitance (115 & 117 only)
edy05f.eps

Fluke 117 Specifications

General

Diode test	Yes
Product type	Digital multimeter
Product color	Black, Yellow
Measuring category	CAT III 600V
Placement supported	Handheld multimeter
Battery type	9V
Power source	Battery
Battery technology	Alkaline
Number of batteries supported	1
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Depth	46 mm
Width	84 mm
Height	167 mm
Weight	550 g
