Fluke 117 User Manual

114, 115, and 117
Users Manual
12
Measuring AC or DC Current (115 & 117)
XWWarning
To avoid personal injury or damage to the
Meter:
• Never attempt to make an in-circuit
current measurement when the open-
circuit potential to earth is
>600 V.
• Check the Meter's fuse before testing.
(See “Testing the Fuse”)
• Use the proper terminals, switch
position, and range for your measure-
ment.
• Never place the probes in parallel with a
circuit or component when the leads are
plugged into the A (Amps) terminals.
A
1
2 3
edy08f.eps

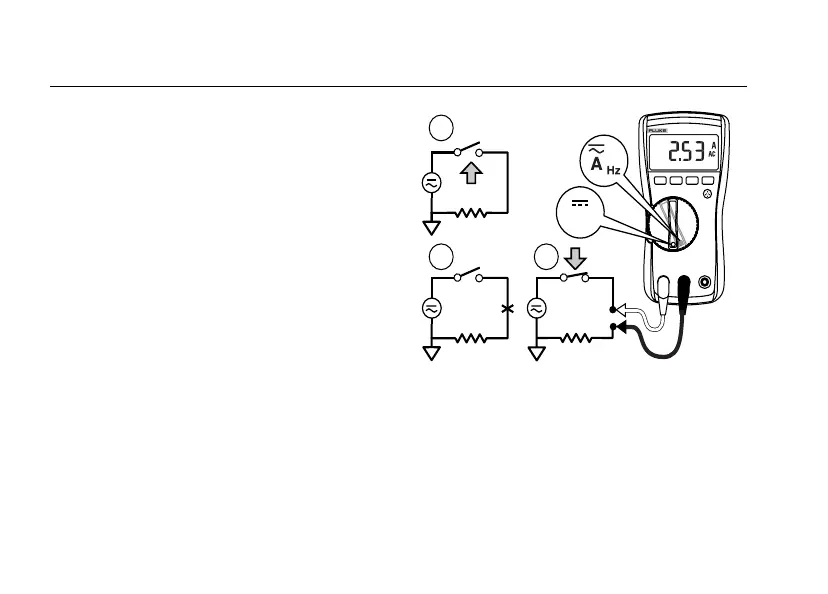

Turn circuit power off, break the circuit, insert the Meter in
series with the circuit, and then turn circuit power on.

Fluke 117 Specifications

General

Diode test	Yes
Product type	Digital multimeter
Product color	Black, Yellow
Measuring category	CAT III 600V
Placement supported	Handheld multimeter
Battery type	9V
Power source	Battery
Battery technology	Alkaline
Number of batteries supported	1
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Depth	46 mm
Width	84 mm
Height	167 mm
Weight	550 g
