Fluke 1503 User Manual

1507/1503
Users Manual
4
Unsafe Voltage
To alert you to the presence of a potentially hazardous
voltage, when the Tester detects a voltage ≥ 30 V in
insulation test, ≥ 2 V in resistance, or a voltage overload
(OL), the Z symbol is displayed.
Battery Saver (Sleep Mode)
The Tester enters the “Sleep mode” and blanks the
display if there is no function change or button press for
10 minutes. This is done to conserve battery power. The
Tester comes out of Sleep mode when a key is pressed or
when the rotary switch is turned.
The 10 minute timer is disabled during any insulation
resistance or earth bond resistance measurement. The
time period starts immediately following any
measurement.
Rotary Switch Positions
Turn the Tester on by selecting any measurement
function. The Tester presents a standard display for that
function (range, measurement units, modifiers, etc.). Use
the blue button to select any rotary switch alternate
functions (labelled with blue letters). Rotary switch

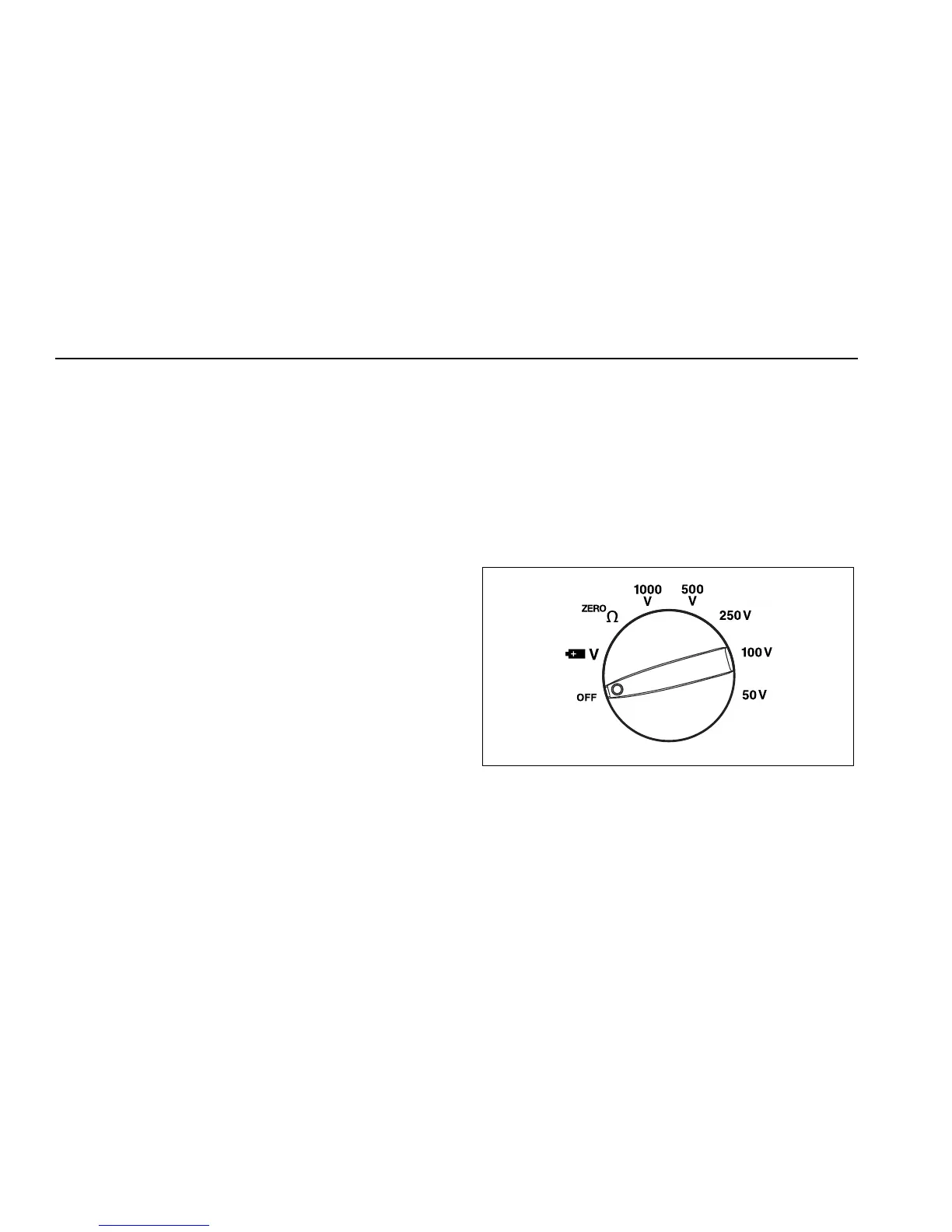

selections are shown in Figure 1 and described in Table 2.
bbw03f.eps
Figure 1. Rotary Switch

Fluke 1503 Specifications

General

Display type	-
Housing color	Grey, Yellow
Maximum voltage	600 V
Drop proof up to	1 m
Operating altitude	0 - 2000 m
Auto discharge time	0.5 s
Operating vibration	2 G
Overload protection	Yes
Non-operating altitude	0 - 12000 m
Maximum capacitive load	1 µF
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 55 °C
Insulation measurement range	0.01 - 2000 MΩ
Insulation test voltage accuracy	20 %
Operating relative humidity (H-H)	0 - 95 %
Insulation measure accuracy (500V)	1.5 %
International Protection (IP) code	IP40
Battery size	AA
Number of batteries supported	4

Weight and Dimensions

Depth	50 mm
Width	100 mm
Height	203 mm
Weight	550 g
