Fluke 1503 User Manual

Insulation Testers
Cleaning
17
INSULATION TESTER
1507
bbw11f.eps

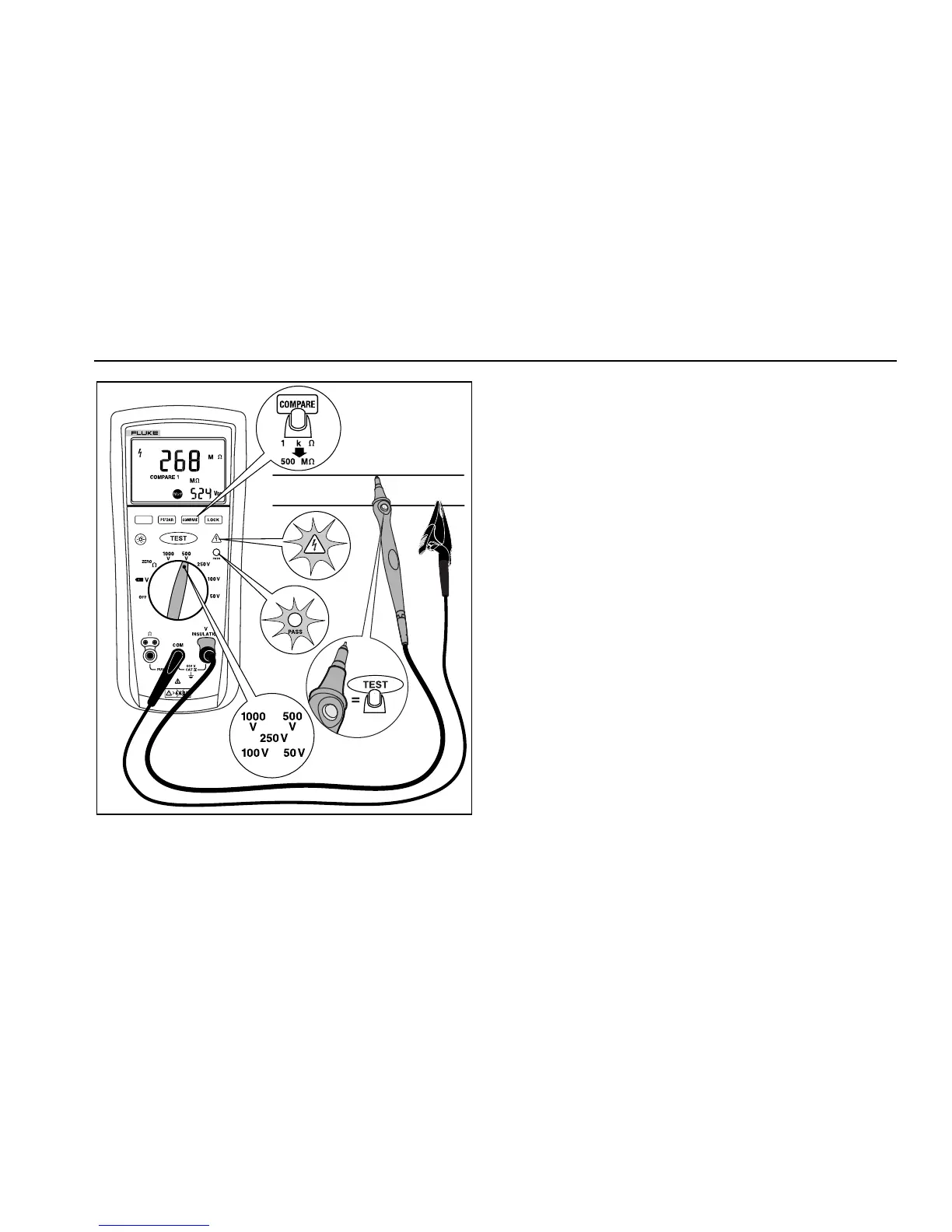

Figure 9. Using the Compare Function
Cleaning
Periodically wipe the case with a damp cloth and mild
detergent. Do not use abrasives or solvents. Dirt or
moisture in the terminals can affect readings. Allow time
for drying before using the Tester.
Testing the Batteries
The Tester continuously monitors battery voltage. If the
low battery icon (B) appears on the display, there is
minimal battery life left. To test the batteries:
1. Turn the rotary switch to the b position with no
probes inserted.
2. Press the blue button to initiate the fully loaded
battery test. The voltage function displays clear and
the measured battery voltage is shown in the primary
display for 2 seconds, the voltage display then
returns.

Fluke 1503 Specifications

General

Display type	-
Housing color	Grey, Yellow
Maximum voltage	600 V
Drop proof up to	1 m
Operating altitude	0 - 2000 m
Auto discharge time	0.5 s
Operating vibration	2 G
Overload protection	Yes
Non-operating altitude	0 - 12000 m
Maximum capacitive load	1 µF
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 55 °C
Insulation measurement range	0.01 - 2000 MΩ
Insulation test voltage accuracy	20 %
Operating relative humidity (H-H)	0 - 95 %
Insulation measure accuracy (500V)	1.5 %
International Protection (IP) code	IP40
Battery size	AA
Number of batteries supported	4

Weight and Dimensions

Depth	50 mm
Width	100 mm
Height	203 mm
Weight	550 g
