3 Phase Power Quality Analyzer
Before You Start
5
2. Remove the two screws.
3. Remove the WiFi/BLE module with a gentle pull on the tether.

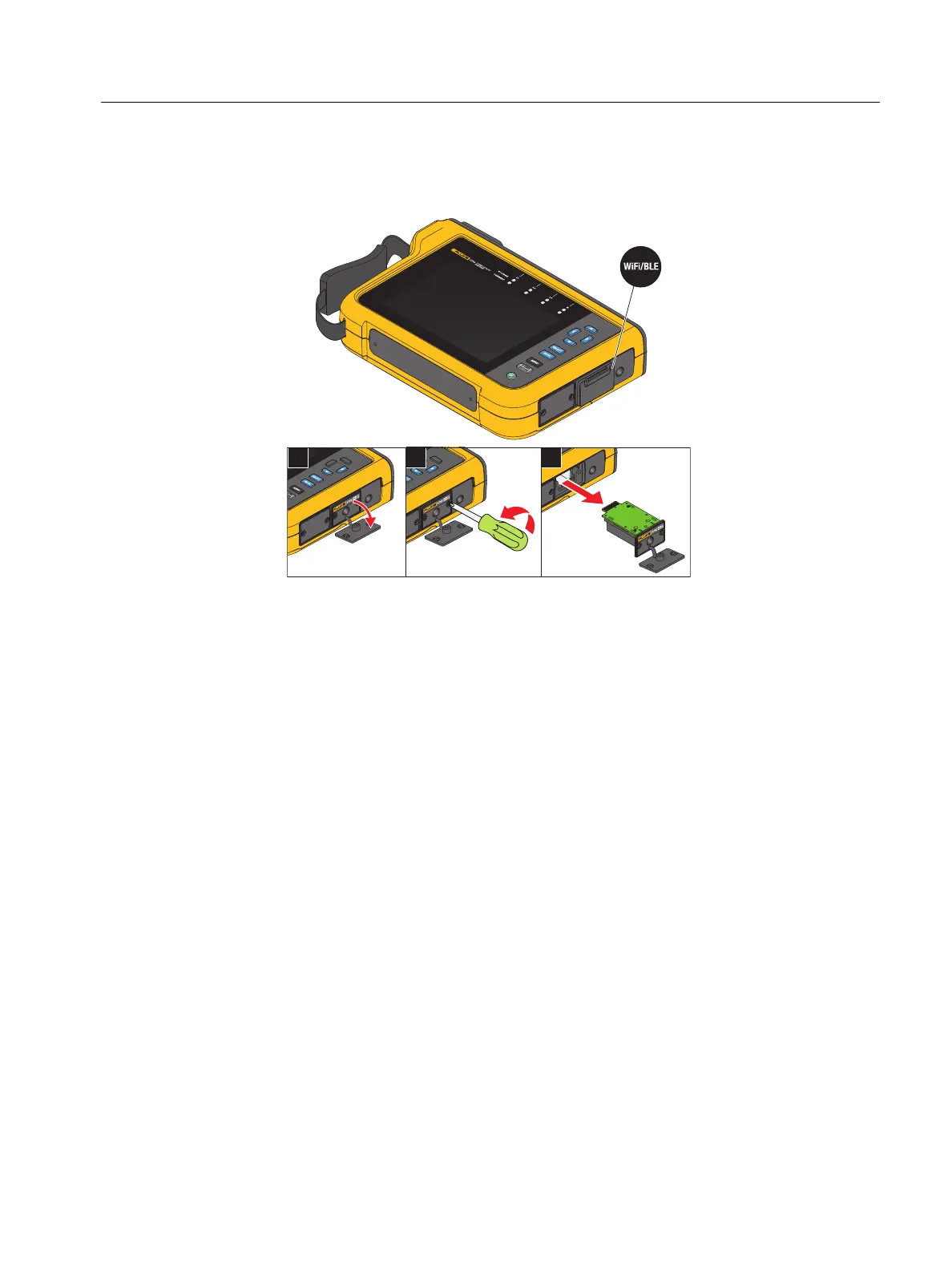

Figure 1. WiFi/BLE Module Installation
4. Close the protection cap.
To u p g r a d e :
1. Unscrew the two screws and dispose of the blind plate.
2. Insert the WiFi/BLE module into the correct slot.
3. Fasten the two screws.
4. Make sure the sealing area is clean and close the protection cap.
The WiFi/BLE module supports the connection to a WiFi infrastructure and direct connection
from a PC to the Analyzer. The module includes an internal antenna.
A router signal is sometimes weak due to factors such as obstacles, power, output, and
distance. The WiFi/BLE module supports an external 2.4 GHz/5 GHz WiFi antenna that can
boost the WiFi range of your signal for a more reliable WiFi signal.
31 2
