3 Phase Power Quality Analyzer
Power
15

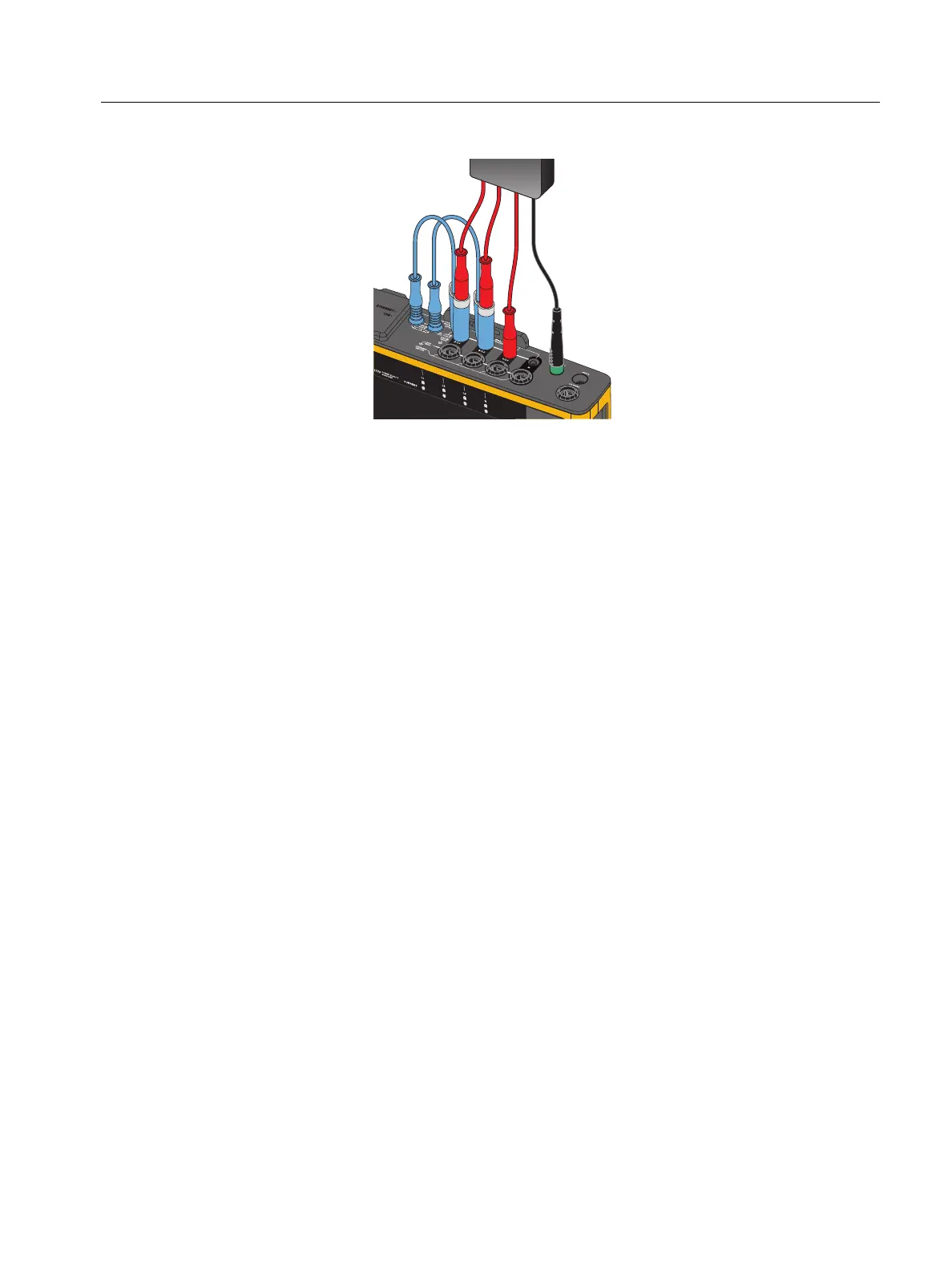

Figure 10. Measurement without Neutral Voltage and Instrument Power Supply
Note
You must locate and connect an alternate power source to the instrument if the
voltage to measure is <100 V or >600 V. Use rated test leads or the supplied power
cord.
5. Connect the voltage inputs to the test points.
Battery Power Source
The Analyzer operates on battery power.
Battery life up to 1.25 hr
Operating temperature range -10 °C to 50 °C
Charging temperature range -10 °C to 50 °C
Push
O to turn on. The Analyzer is ready to use in <30 seconds. The battery symbol in the
status bar indicates the battery status. See Ta b l e 5 .
W Caution
To prevent damage to the Product:
Do not leave batteries unused for extended periods of time, either in the product
or in storage.
When a battery has not been used for six months, check the charge status and
charge the battery as appropriate.
Clean battery packs with a a clean, dry cloth.
Battery packs must be charged before use.
After extended storage, it can be necessary to charge and discharge a battery
pack to obtain maximum performance.
Dispose of the batteries properly.
