1773/1775/1777
Users Manual
8
Magnet Hanger Kit
Use the Magnet Hanger Kit to hang the Product. See Figure 4.

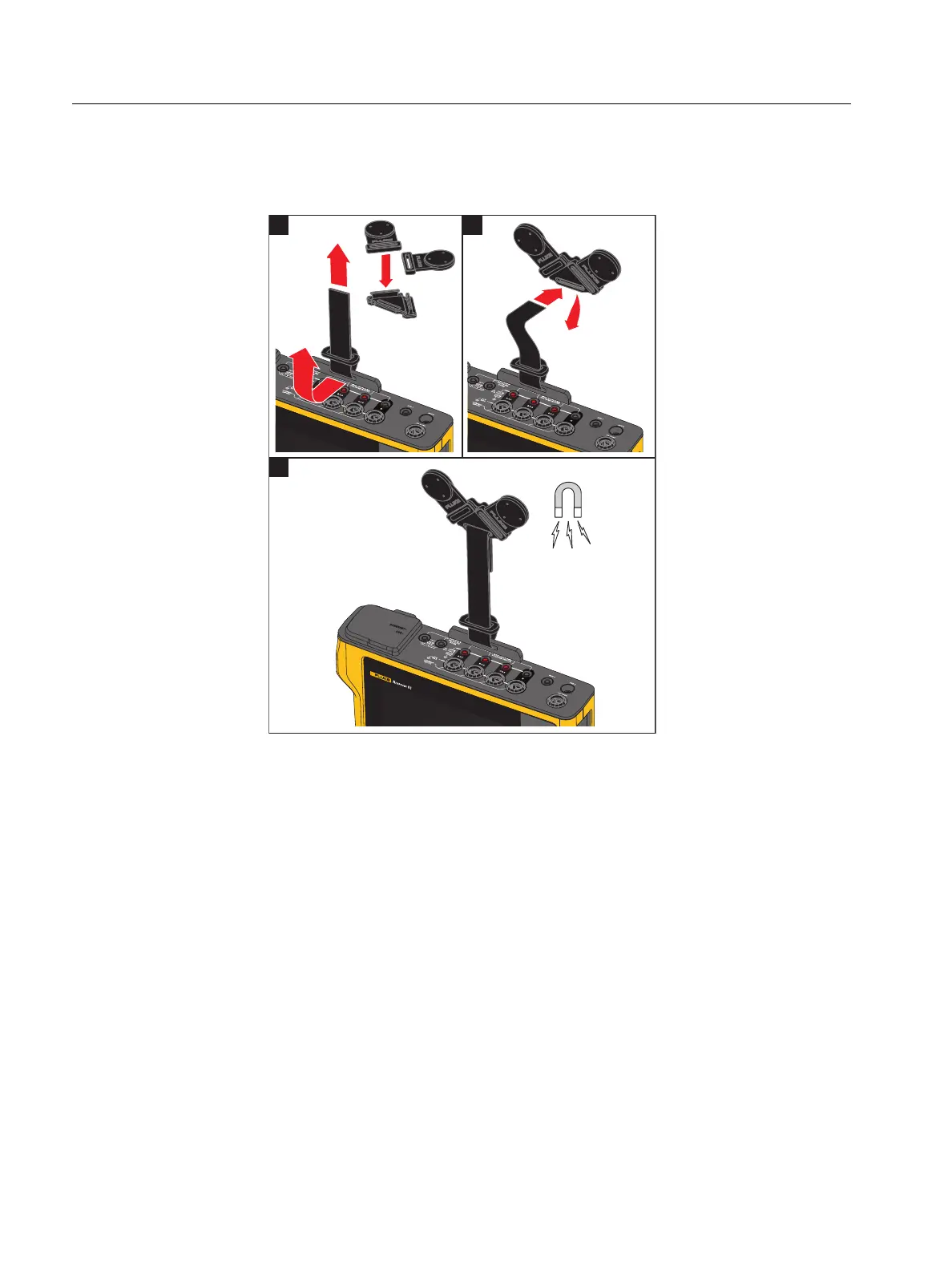

Figure 4. Magnet Hanger Kit
W Caution
Always use two magnets to hang the Product.
Voltage Test Leads
Four-core, flat, voltage test leads connect up to three phases and neutral. These leads do not
tangle and can be installed in tight spaces.
For neutral-to-ground and high-speed transient measurements, use the test lead with green
plugs for the Earth/Ground connection. Be sure that you attach the dolphin clips to a good
ground source, such as bare, uncoated parts of the cabinet.
