1773/1775/1777
Users Manual
6
An adapter cable (available from Fluke) connects the antenna to the installed WiFi/BLE module.
See Figure 2.

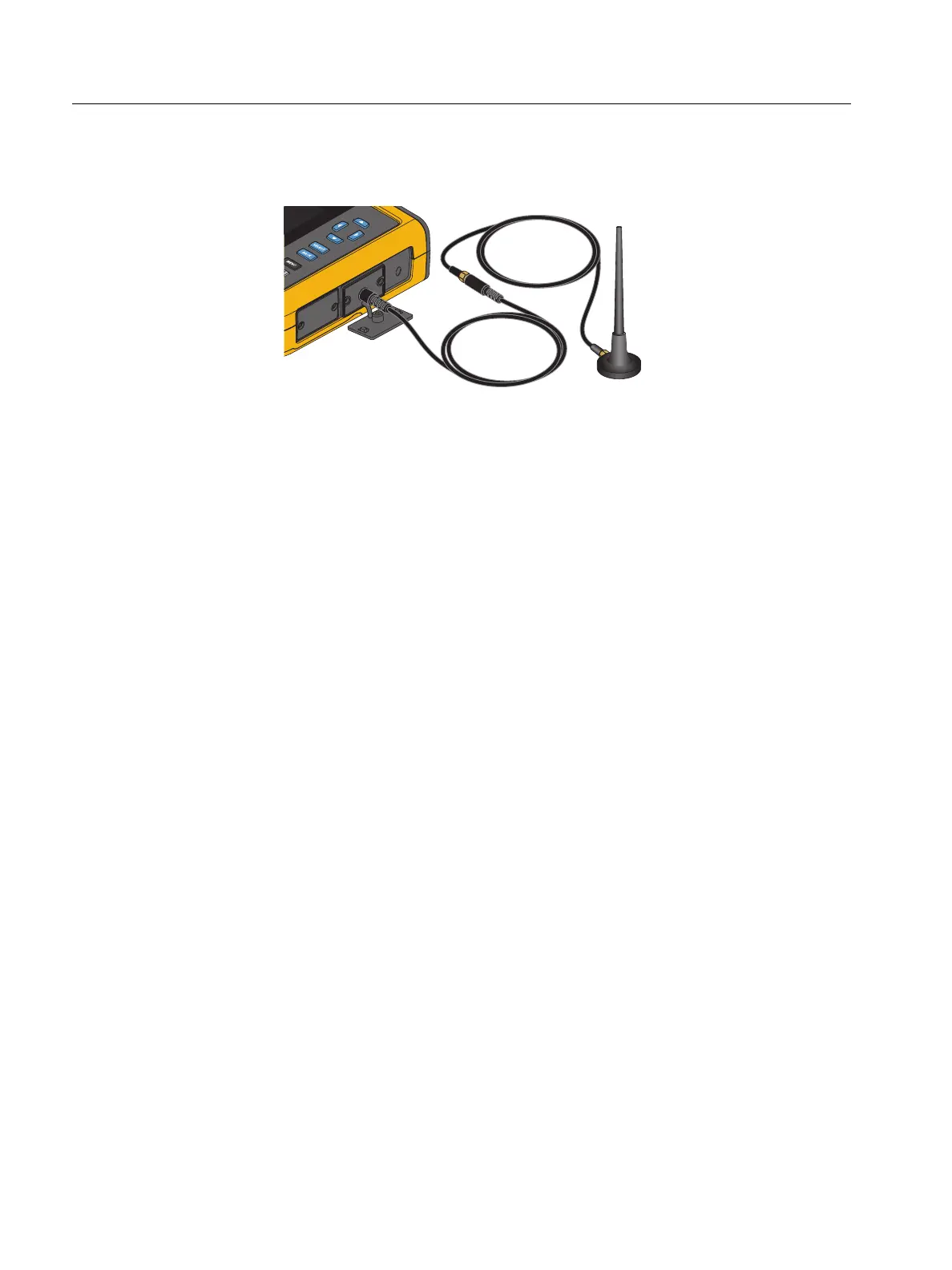

Figure 2. WiFi Antenna Connection
Note
The antenna cable connects to the antenna with a SMA connector that has an outside
thread and a center receptacle (SMA female/jack). Former FCC regulations required
that WiFi equipment must use reverse polarity connectors. You must use an SMA male
plug to RP-SMA female adapter if the antenna uses a RP-SMA male connector with an
internal thread and center receptacle.
XW Warning
To prevent possible electrical shock, fire, or personal injury, use Product-
approved measurement category (CAT) antenna cables when the Product is
installed in environment where wires or exposed metal parts provide access to
hazardous live voltage, such as, in cabinets.
GPS Time Synchronization
With a GPS antenna, the Analyzer has the best possible real-time accuracy of typically 1 ms
and complies to the time synchronization requirements of IEC61000-4-30 Class A.
To use GPS time synchronization:
1. Go to Instrument Setup > Time Synchronization Source and configure as GPS.
The GPS status on the Analyzer indicates an invalid time synchronization status and no
connection to the GPS receiver.
2. Attach the antenna cable to the GPS Input Connector. See Figure 3.
PN 5263915
