3 Phase Power Quality Analyzer
Touchscreen/Basic Navigation
19
Tip. Screenshots are a valuable source of data for reports that are used for confirmation of the
state of the measurements at the time of the capture. Best items for including are the
verification screen to prove the setup is correct, the scope picture, the phasor picture, and the
PQ Health screen for a completed logging session.
Note
When on site, photographs of the location that show the connections and rating plates
of electrical panels, transformers, or motors are useful. These can be integrated in to
the final Fluke Energy Analyze report. Also consider including thermographic or
acoustic images.

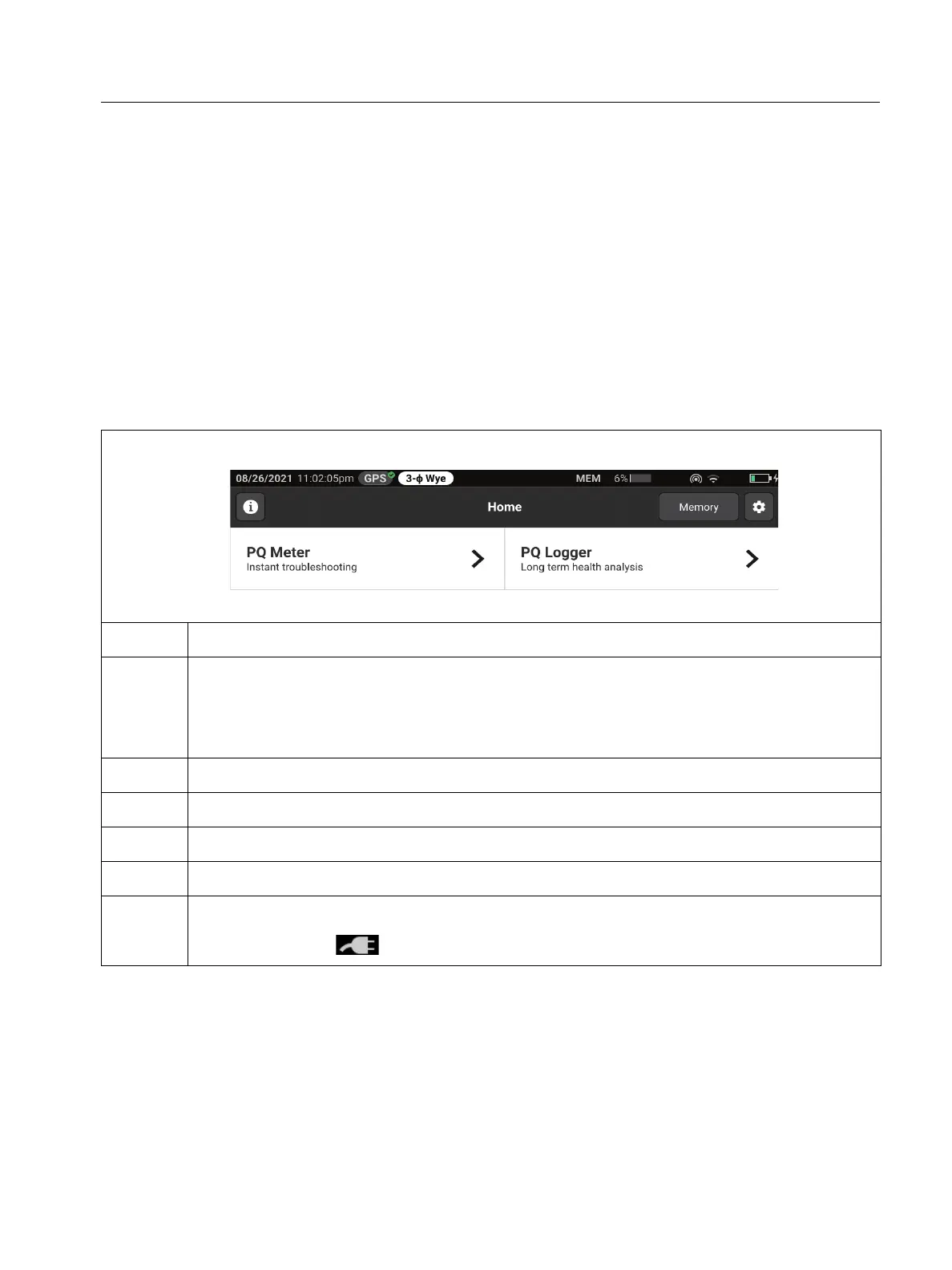

Ta b l e 5 is a list of the symbols that show in the status bar with an explanation for each.
Table 5. Sta tus Bar Indicato rs
Date and time
Time synchronization status:
GH I
K
GPS: on GPS: Error NTP: Chosen GPS to NTP: Default condition
To p o l o g y
Memory gauge (linear or circular)
WiFi hotspot
WiFi client
Battery icon and status: d e f g h e[
Line power icon: r
