1773/1775/1777
Users Manual
12

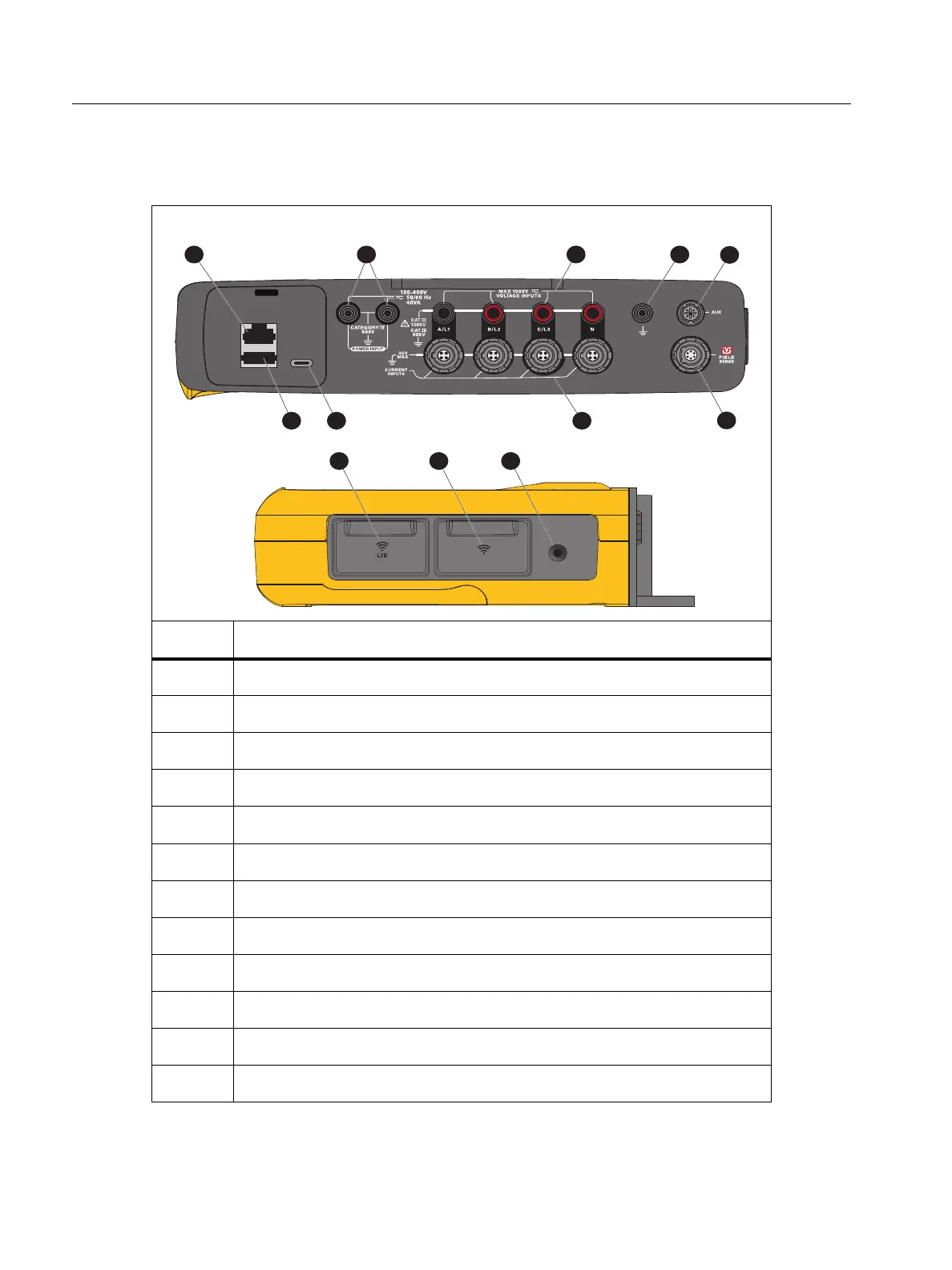

Ta b l e 4 is a list of the connectors and functions.
Table 4. Connector Panel
Item Description
Ethernet
Power Supply Input 600 V 50/60 Hz 40 VA
Voltage measurement inputs (3 phases + N)
Earth/Ground measurement input
Auxiliary 1/2 Input
FieldSense™ input
Current measurement inputs (3 phases + N)
USB-C connector
USB 2.0 Type-A connector
LTE Communications expansion port
WiFi/BLE
GPS antenna
ETHERNET
USBUSB
1 2 3
5
6
789
10 11 12
4
