3 Phase Power Quality Analyzer
Glossary
53
This trigger is a general-purpose trigger that detects non-stationary phenomena and is
perfectly suitable for all kinds of disturbance analysis and troubleshooting, because most of
the power quality problems result in a sudden change of the waveform. From the recorded
waveforms, in most cases the root-cause of distortions can be identified: Switching of
capacitor banks, commutation distortions, and oscillations on the mains supply. In addition,
ground shorts in the medium voltage systems with their typical significant waveforms can be
identified. See Ta b l e 1 3 .
Parameters to configure:
Trigger on/off
Limit
The voltage threshold limit is the maximum deviation of the sample magnitude of the actual
cycle to the magnitude of the previous cycle in % of nominal voltage.
Recommendation of values depending on the required trigger sensitivity:

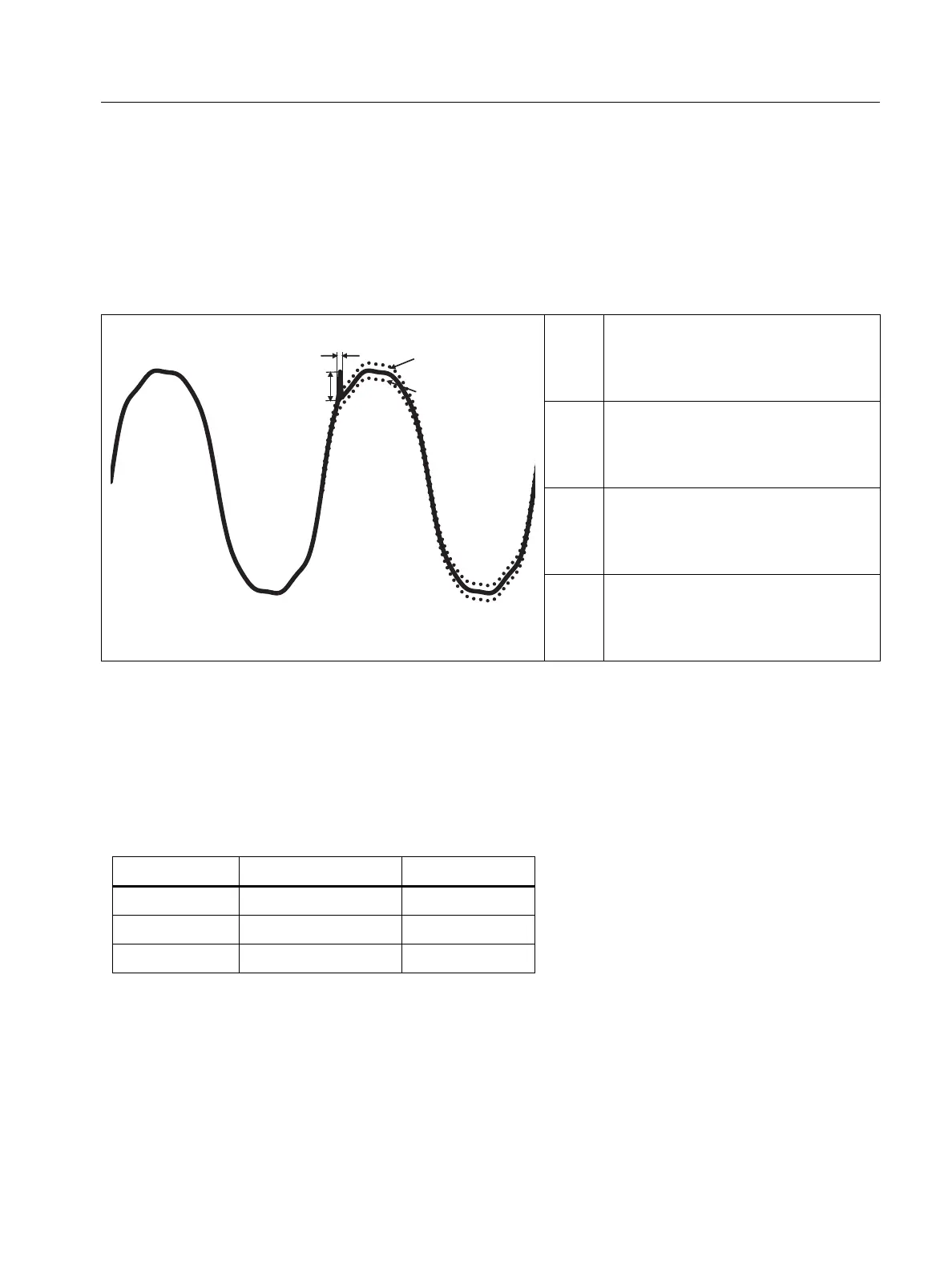

Table 13. Waveform Deviation
Maximum Deviation V
MAX
Duration
Waveform of previous cycle +
threshold limit
Waveform of previous cycle -
threshold limit
Trigger 120V-System 230V-System
High 50 % 25 %
Medium 20 % 10 %
Low 10 % 5 %
