Fluke 43B User Manual

Fluke 43B
Users Manual
6

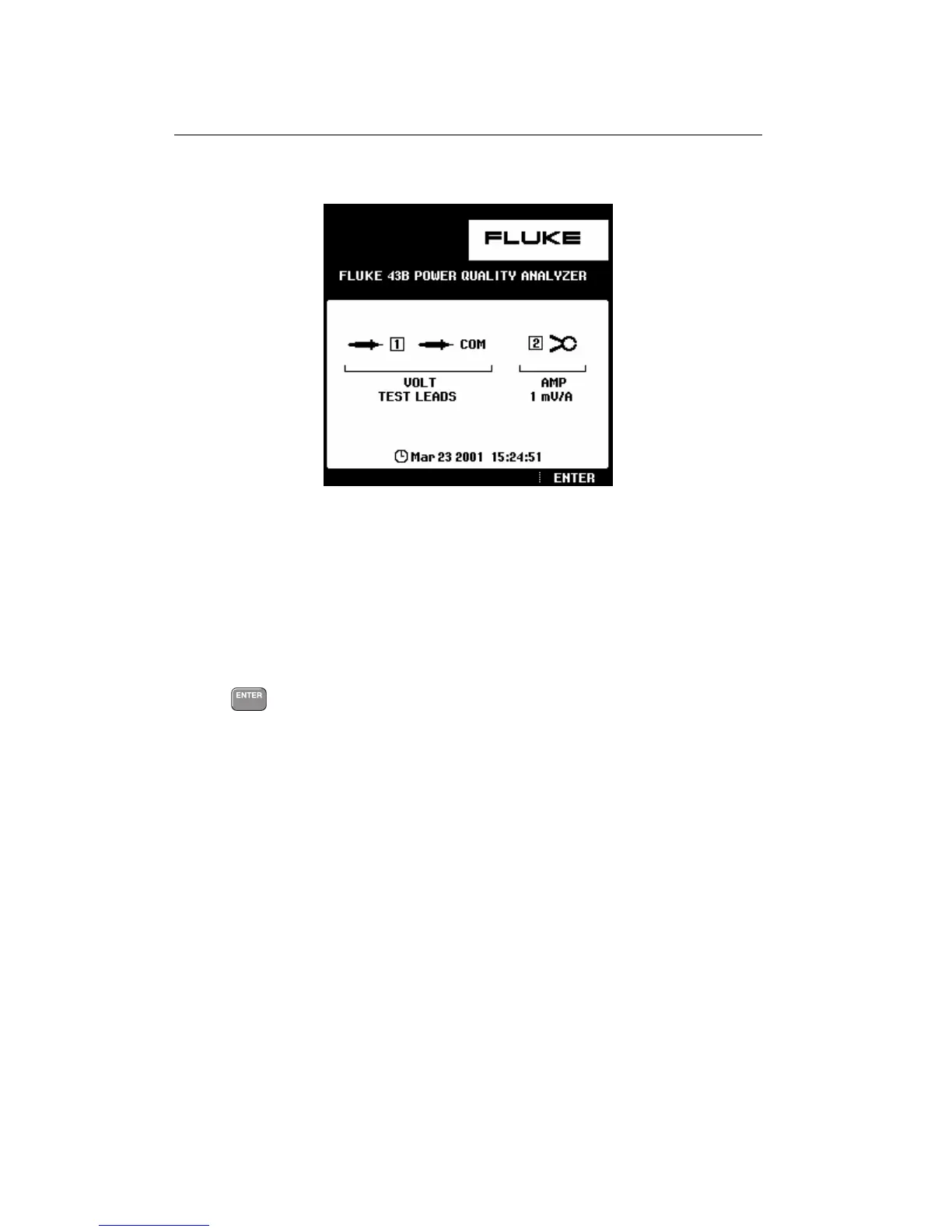

Figure 3. Opening Screen
The screen shows which test leads or probes you should use on the inputs.
Note that in the screen shown in Figure 3, for example, you should use TEST
LEADS
for voltage measurements and a 1 mV/A current probe for current
measurements.
4
Continue.

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
