Fluke 43B User Manual

Introducing the Fluke 43B
Inputs
1
7
Inputs

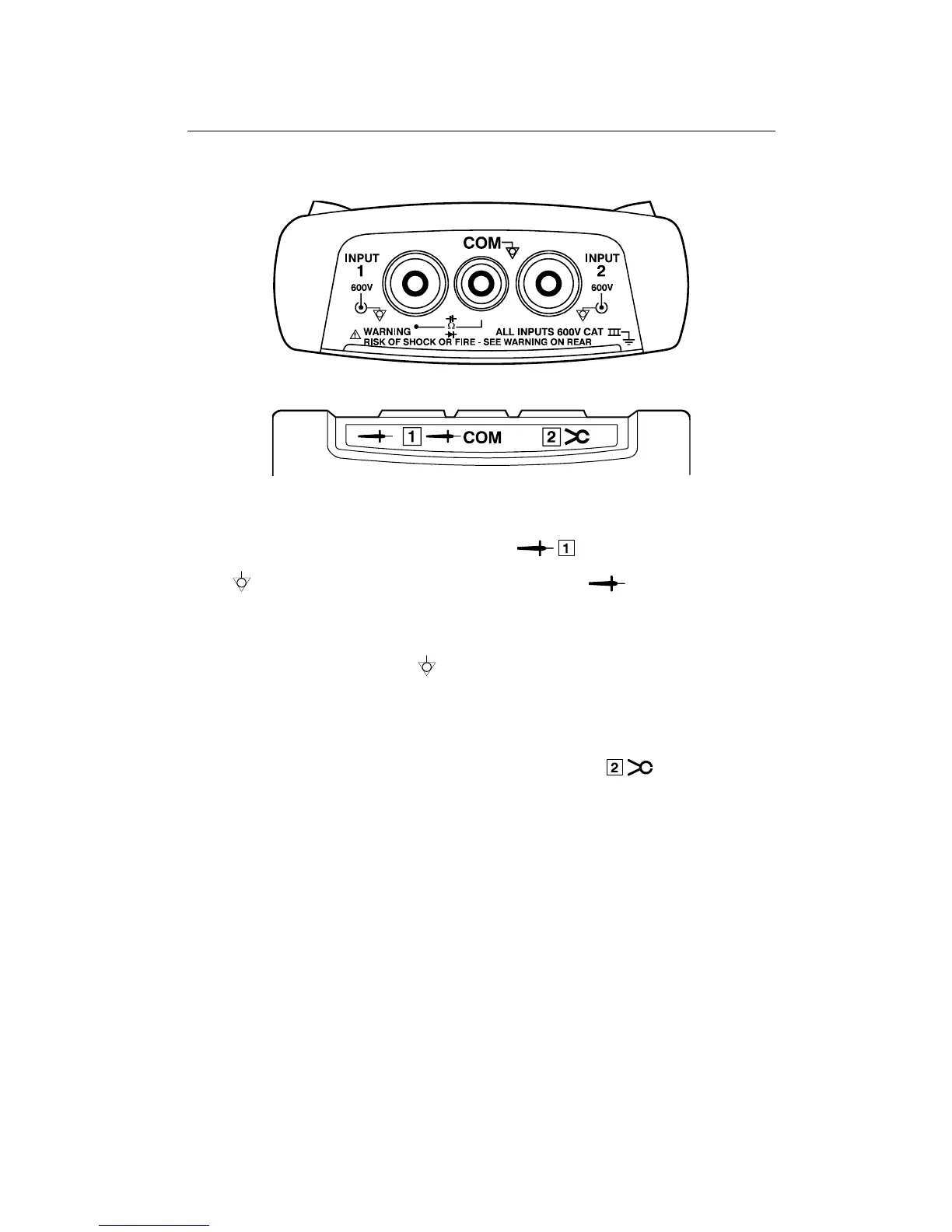

Figure 4. Measurement Connections
INPUT 1: Use the red test lead on input 1 ( ).
COM
: Use the black test lead on the COM input ( COM).
Use these inputs for all voltage measurements, and for Ohm, continuity, diode
capacitance and temperature measurements.
The Fluke 43B common inputs
(red INPUT 1 shield, gray INPUT 2 shield,
and black COM input) are connected internally via self-recovering fault
protection.
INPUT 2: Use the i-400s AC current probe on input 2 (
).
This input is mainly used for current measurements. Use the BB120 banana-to-
BNC adapter to connect the current probe.
Note
If you use other test leads or probes, change the probe settings in the
instrument setup menu (see “Selecting Probes”).

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
