Fluke 43B User Manual

Introducing the Fluke 43B
Instrument Setup
1
17

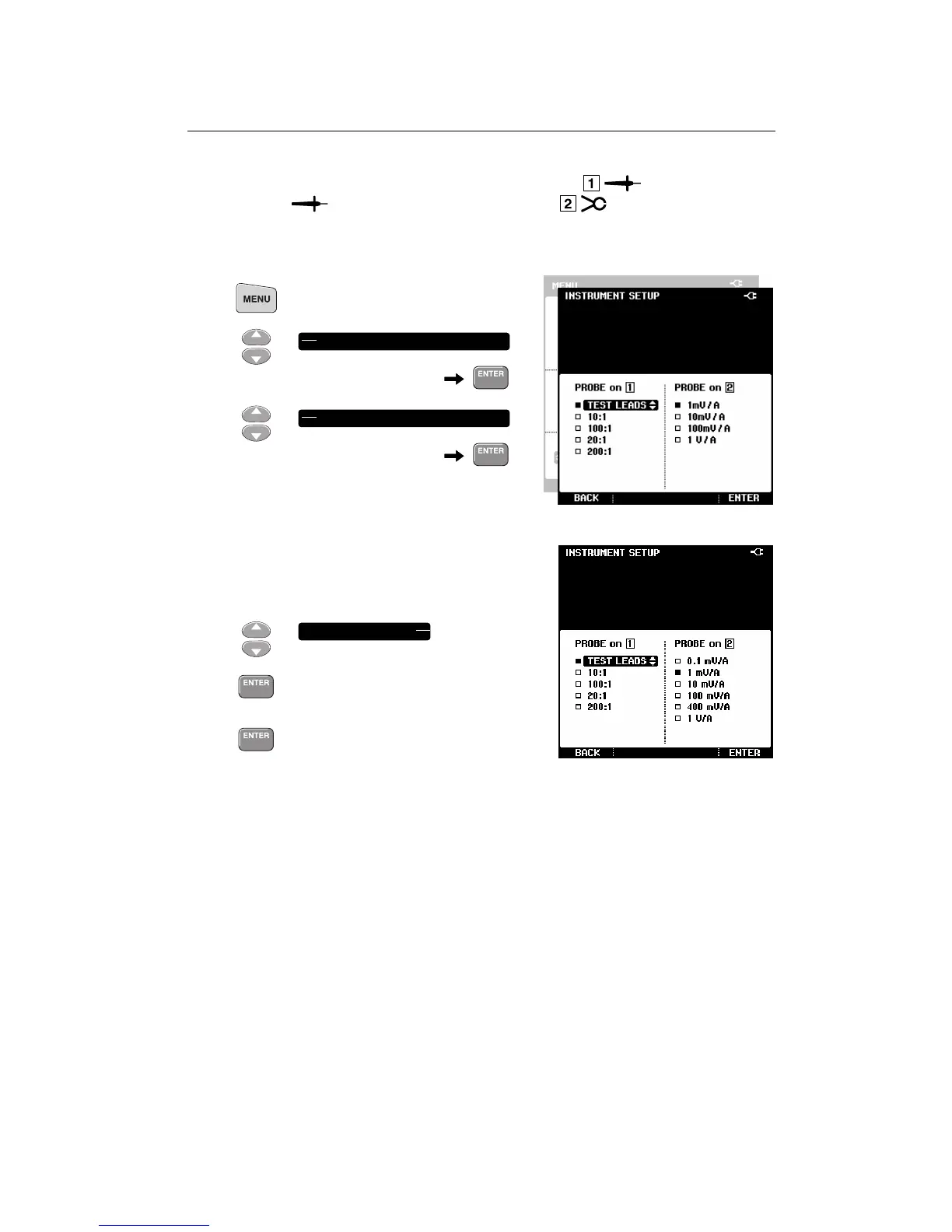

Selecting Probes
For standard operation, use the red test lead on input , the black test
lead on COM and the current clamp on input . If you are using other
test leads or probes, you must change the probe settings accordingly.
1
Open the main MENU.
2
3
Select the type of probe you are going to use
on input 1. For all applications in the
Applications Guide, you must use test leads.
4
(for example)
5
Accept the probe settings for
input 1. The screen closes.
6
Select PROBES again.
Select the sensitivity of the current probe you are going to use on input 2.
For all applications in the Applications Guide, use the i-400s current probe and
choose 1 mV/A.
 INSTRUMENT SETUP
 PROBES
TEST LEADS 

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
