Fluke 43B User Manual

5
Chapter 1
Introducing the Fluke 43B
Powering the Fluke 43B
To power the Fluke 43B from a standard AC outlet, perform steps 1-3.
For battery power, see Chapter 2.
1
Plug the power adapter into the AC outlet.
2
Connect the power adapter cable to the Fluke 43B (see Figure 2).

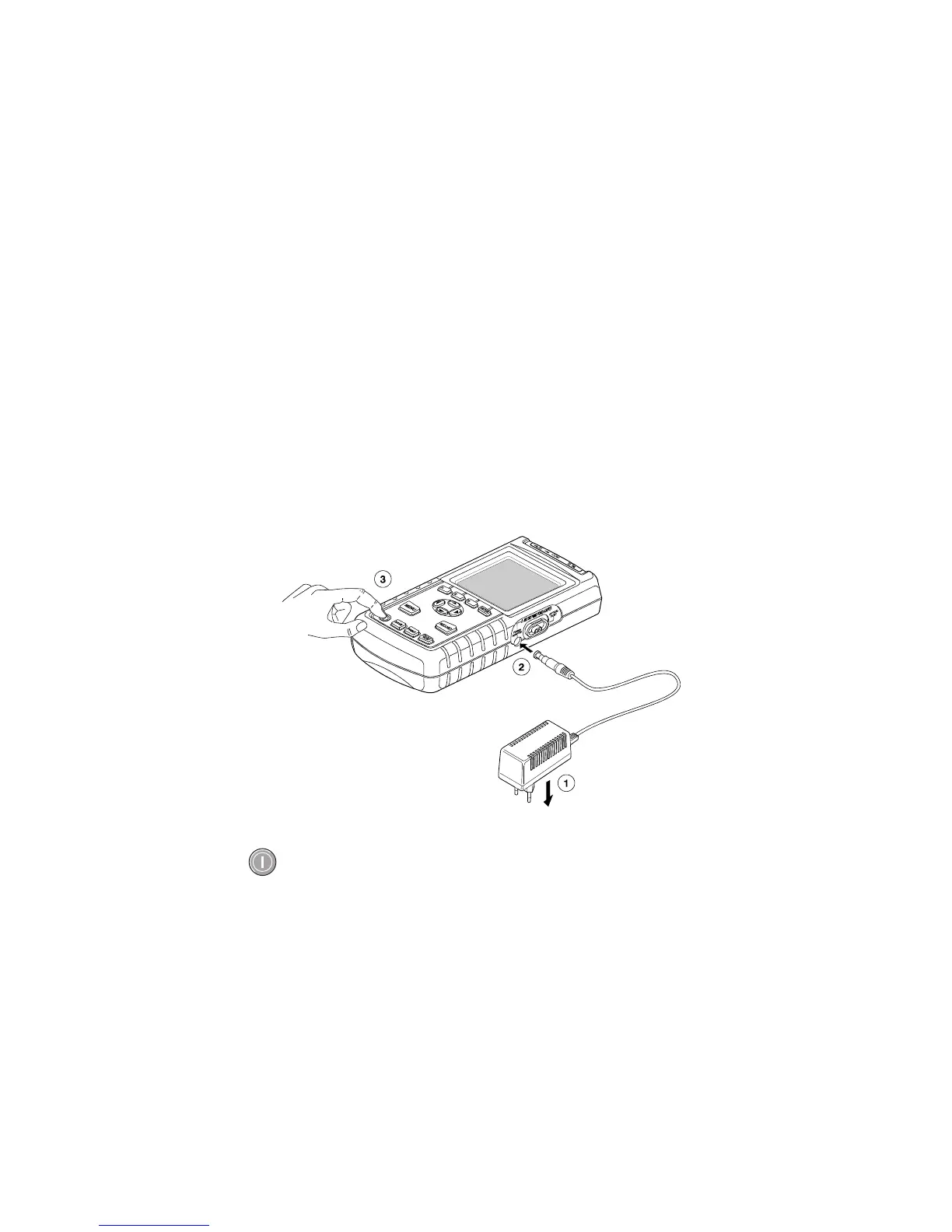

Figure 2. Powering the Fluke 43B
3
Turn the Fluke 43B on.
The opening screen will appear on the display (see Figure 3).
Note
If the Fluke 43B does not turn on, the batteries may be dead. Leave
the Fluke 43B connected to the outlet for 15 minutes and try again.

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
