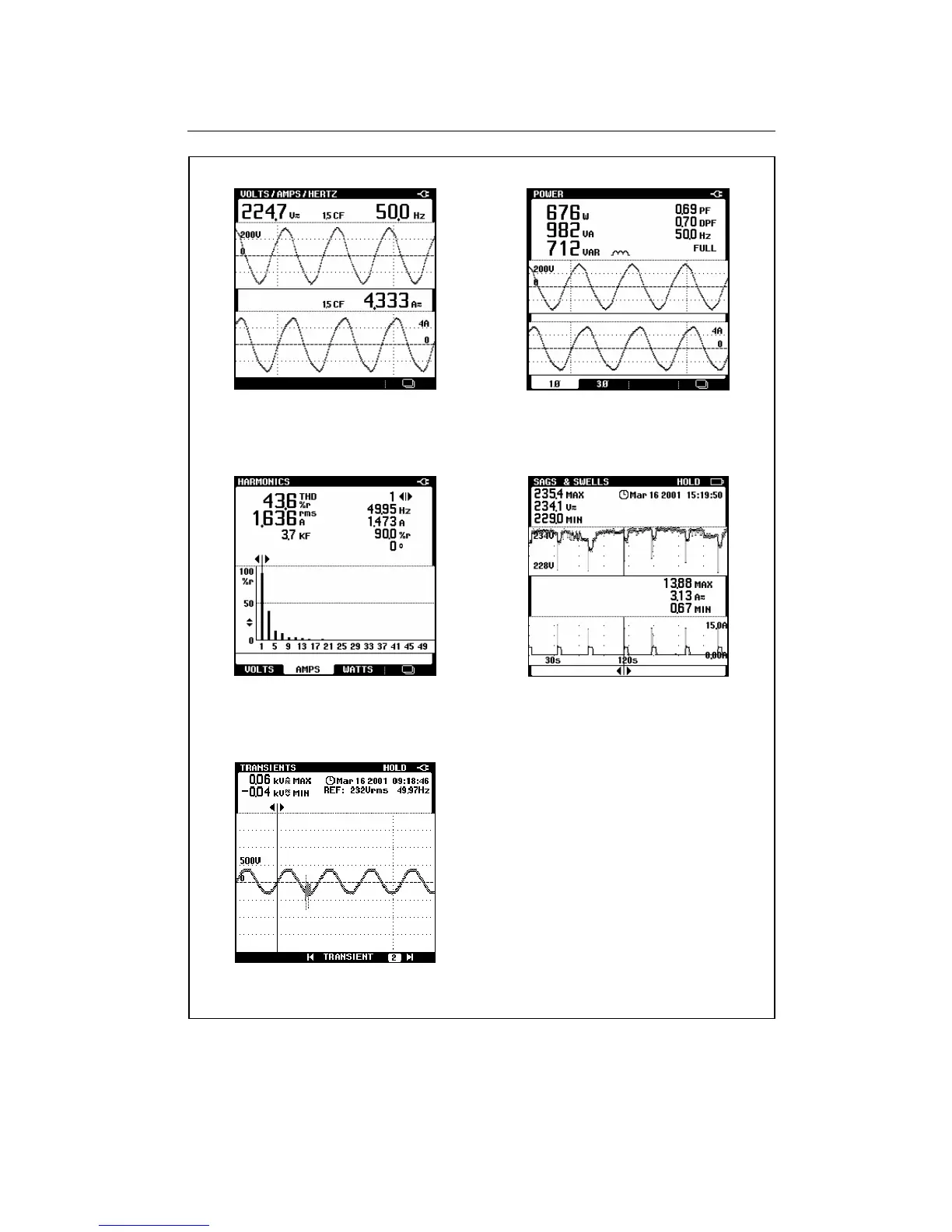

Introducing the Fluke 43B
Main Menu
1
9
VOLTS / AMPS / HERTZ
Gives a fast overview of Volts, Amps
and Hertz.
POWER
Shows all power readings in one
screen.
HARMONICS
Measures up to 51 harmonics.
SAGS & SWELLS
Shows dips and surges as short as
one cycle. With time stamp.
TRANSIENTS
Captures and stores up to 40 voltage
transients.
