Fluke 719 Series User Manual

Pressure Calibrator with Electric Pump
Getting Acquainted with the Calibrator
7
Table 4. Pump Features
Item Description
A Internal Pump- Press P to activate internal
electric pump and source pressure/vacuum.
B Pressure Vacuum Switch- Rotate forward
(clockwise) for pressure, backward (counter-
clockwise) for vacuum.
C Pressure/Vacuum Release Valve- Rotate fully
backward (counter-clockwise) to release all
pressure or vacuum. (Rotate slightly for partial
release.) Rotate fully forward (clockwise) to
close valve.
D Fine Adjustment Knob-Rotate either direction
for precise adjustment of applied pressure or
vacuum. Full rotation is about 30 turns.
mA
OUTPUT
25% Step
COM
30V
MAX
SOURCE/SIMULATE
0-24 mA
LIMITS
ADJUST ALL.
PUMP
mA
MIN
MAX
SWITCH
TEST
2
3
4
1
fgx009f.eps

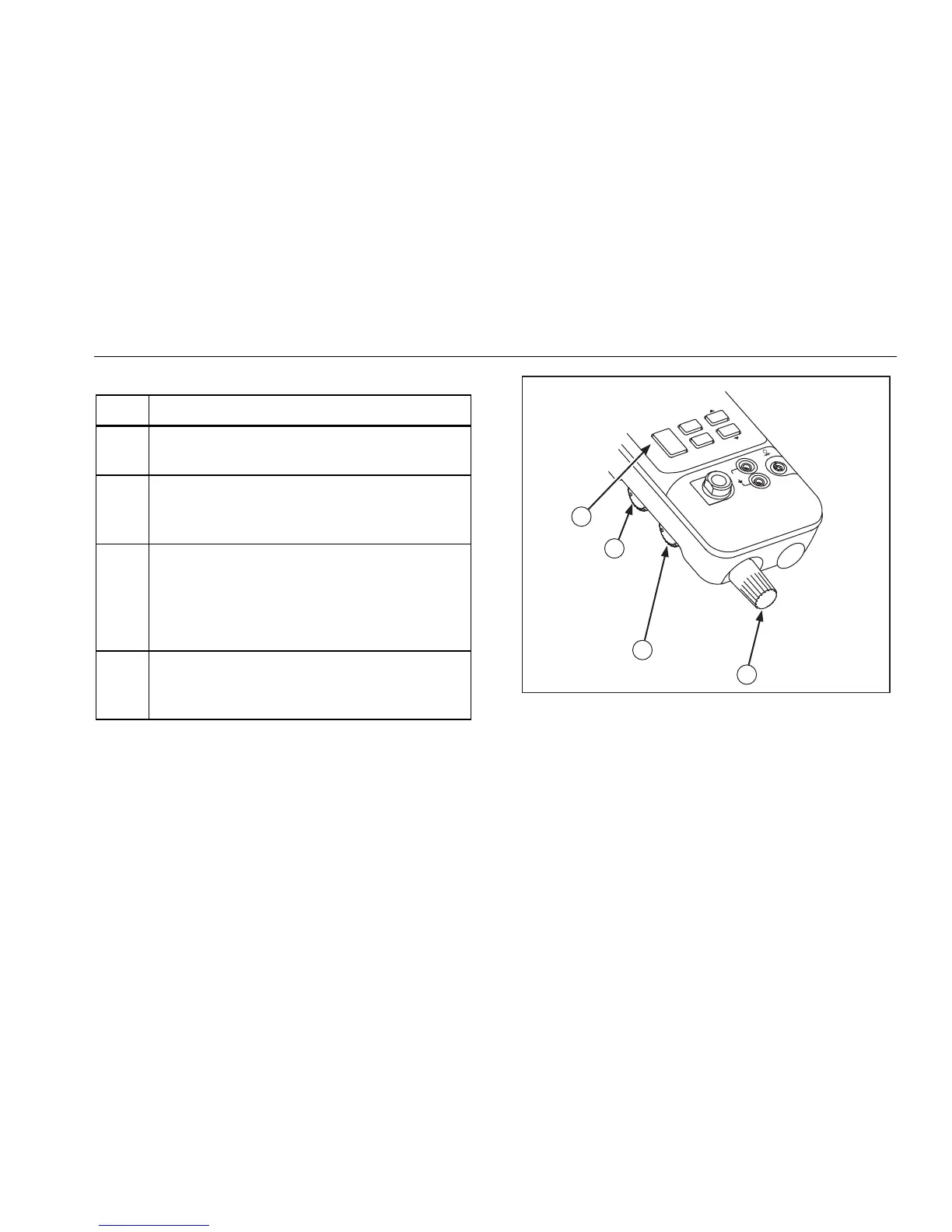

Figure 3. Pump Features

Fluke 719 Series Specifications

General

Accuracy	0.025% of full scale
Current Measurement	0 to 24 mA
Display	LCD
Pressure Media	Non-corrosive gases
Pressure Units	psi, bar, kPa
Resolution	1 µA
Loop Power	24V DC
Operating Temperature	-10 °C to 55 °C
Storage Temperature	-20 °C to 60 °C
Weight	0.65 kg
