Fluke 719 Series User Manual

719 Series
Users Manual
22
Replacing the Batteries
When the battery symbol (B) appears, replace the two
9 V alkaline batteries. Refer to Figure 10.
XW Warning
To avoid false readings, which could lead to
possible electric shock or personal injury,
replace the batteries as soon as the battery
indicator (
B
) appears. Remove test leads
before changing the battery.
Calibration
Fluke recommends calibrating the Calibrator once a year
to ensure that it performs according to its specifications.
wh008f.eps

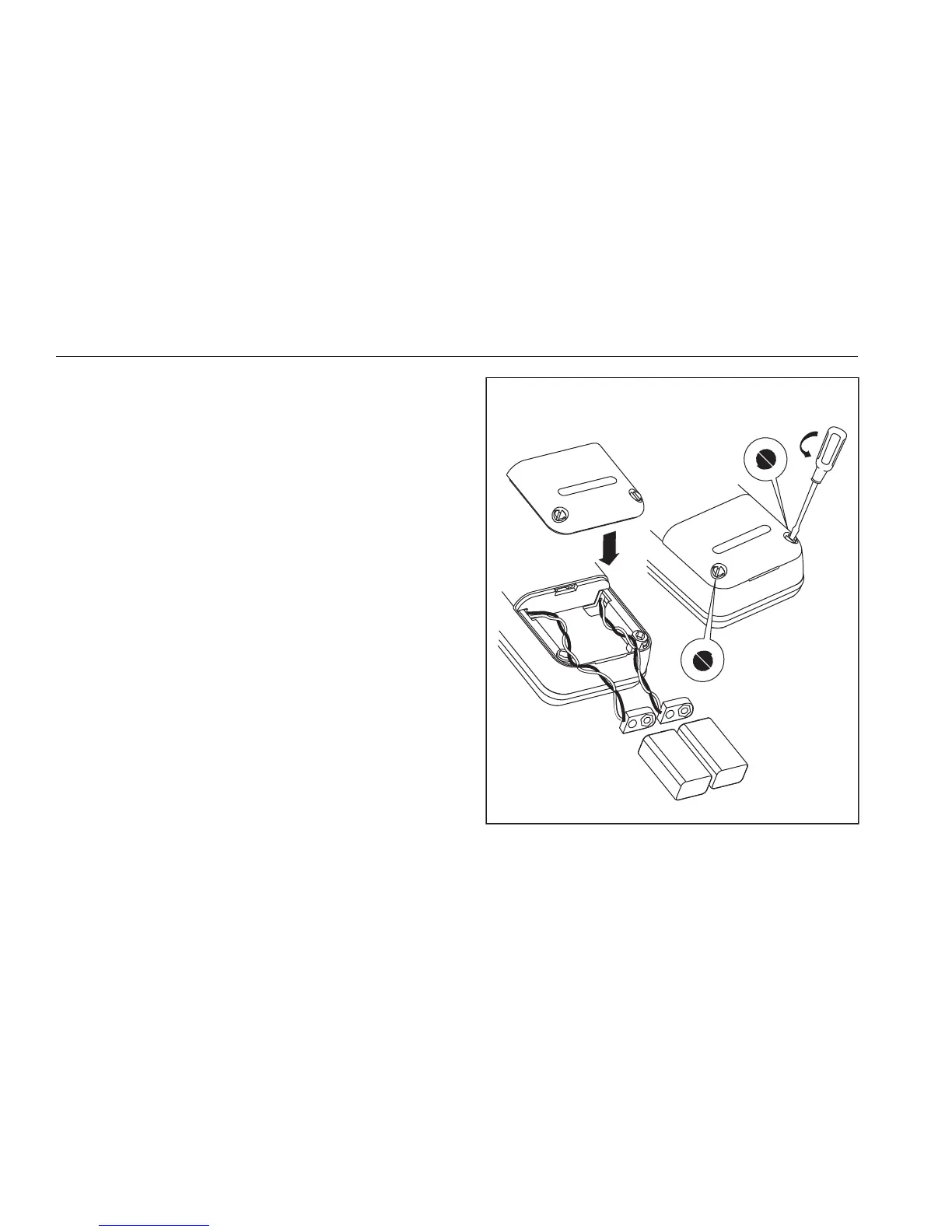

Figure 10. Battery Replacement

Fluke 719 Series Specifications

General

Accuracy	0.025% of full scale
Current Measurement	0 to 24 mA
Display	LCD
Pressure Media	Non-corrosive gases
Pressure Units	psi, bar, kPa
Resolution	1 µA
Loop Power	24V DC
Operating Temperature	-10 °C to 55 °C
Storage Temperature	-20 °C to 60 °C
Weight	0.65 kg
