Fluke 719 Series User Manual

Pressure Calibrator with Electric Pump
Using the Internal Pump
13
-7
mA
30V
MAX
SIGNAL
TEST
+
–
Pressure Module
Red
Black
719
PRESSURE
CALIBRATOR
HOLD
mA
OUTPUT
25% Step
COM
30V
MAX
SOURCE/SIMULATE
0-24 mA
U
N
ITS
LIMITS
ENTER
LOOP
POWER
ADJUST ALL.
f
PUMP
mA
MIN
MAX
HOLD
ZERO
fgx010f.eps

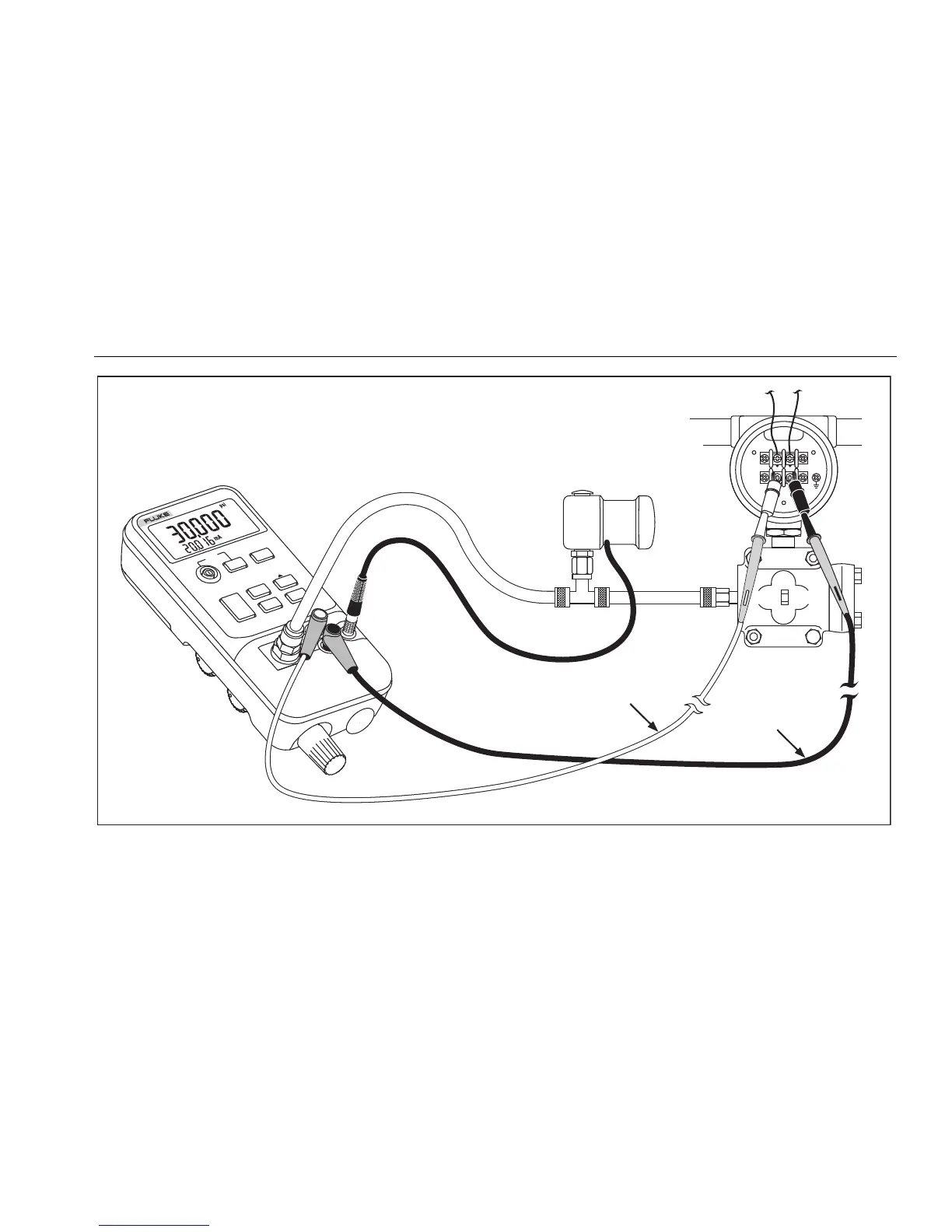

Figure 5. Pressure Module with Internal Pump

Fluke 719 Series Specifications

General

Accuracy	0.025% of full scale
Current Measurement	0 to 24 mA
Display	LCD
Pressure Media	Non-corrosive gases
Pressure Units	psi, bar, kPa
Resolution	1 µA
Loop Power	24V DC
Operating Temperature	-10 °C to 55 °C
Storage Temperature	-20 °C to 60 °C
Weight	0.65 kg
