Temperature Calibrator
Using Measure Mode
19
Measuring Electrical Parameters (Lower Display)
To measure the electrical parameters using the lower
display, proceed as follows:
1. Connect the calibrator as shown in Figure 9.
2. If necessary, press
M for MEASURE mode (lower
display)
3. Press
l for dc voltage or current, or U for
resistance.
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
V
LOO P
mA
V
˚
F
˚
C
zi07f.eps

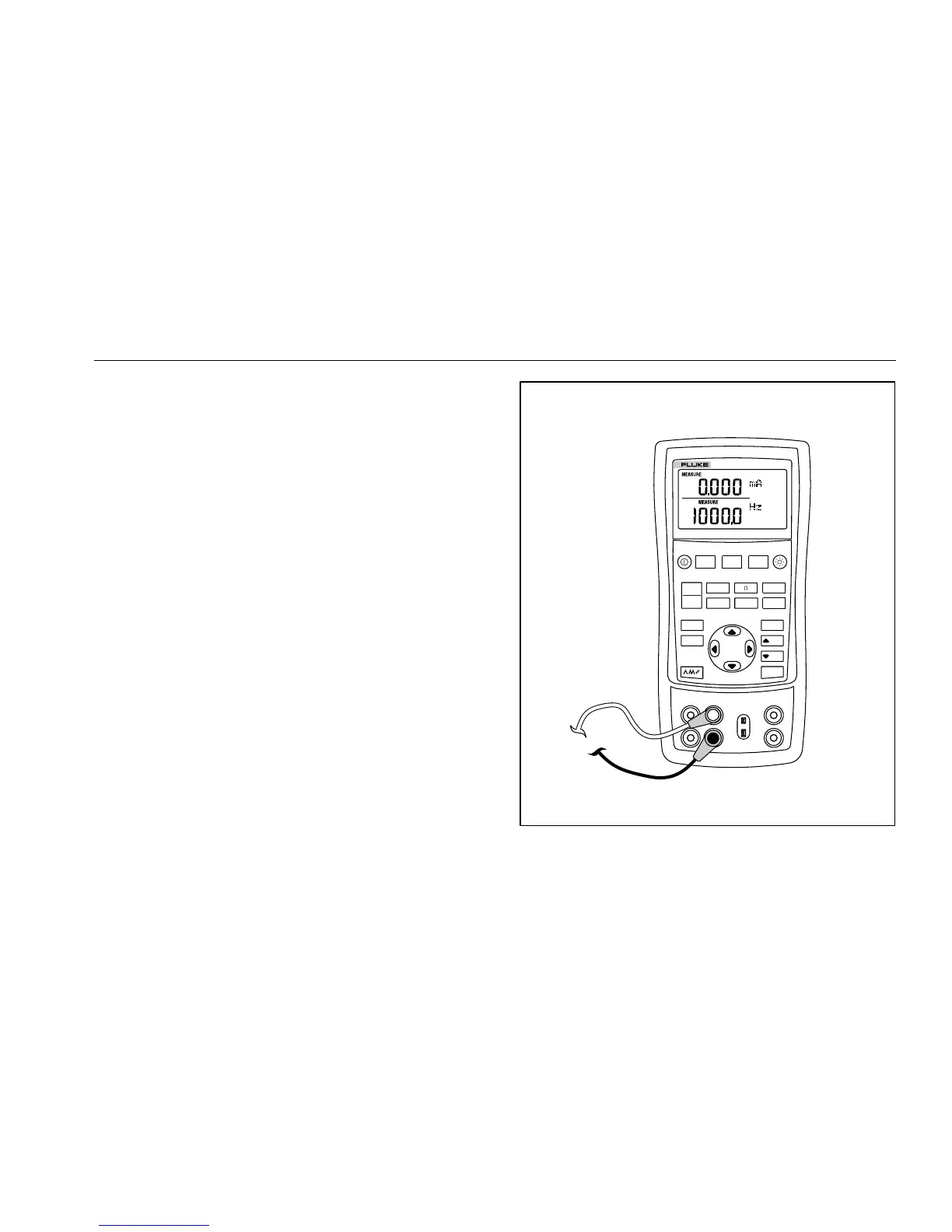

Figure 9. Measuring Electrical Parameters
