Fluke 724 User Manual

724
Users Manual
26
Using Source Mode
In SOURCE mode, the calibrator generates calibrated
signals for testing and calibrating process instruments,
supplies voltages and resistances, and simulates the
electrical output of RTD and thermocouple temperature
sensors.
Sourcing Electrical Parameters
Volts or ohms are sourced and shown in the lower
display.
To select an electrical sourcing function, proceed as
follows:
1. Connect the test leads as shown in Figure 12,
depending on the source function.
2. If necessary, press
Mfor SOURCE mode.
3. Press
V for dc voltage, or U for resistance.
4. Enter the desired output value by pressing
X and
W keys. Press Y and Z to select a different digit to
change.
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W
V
RTD
TC
COM COM
LOOP
Red
Black
+
–
Common
V
zi09f.eps

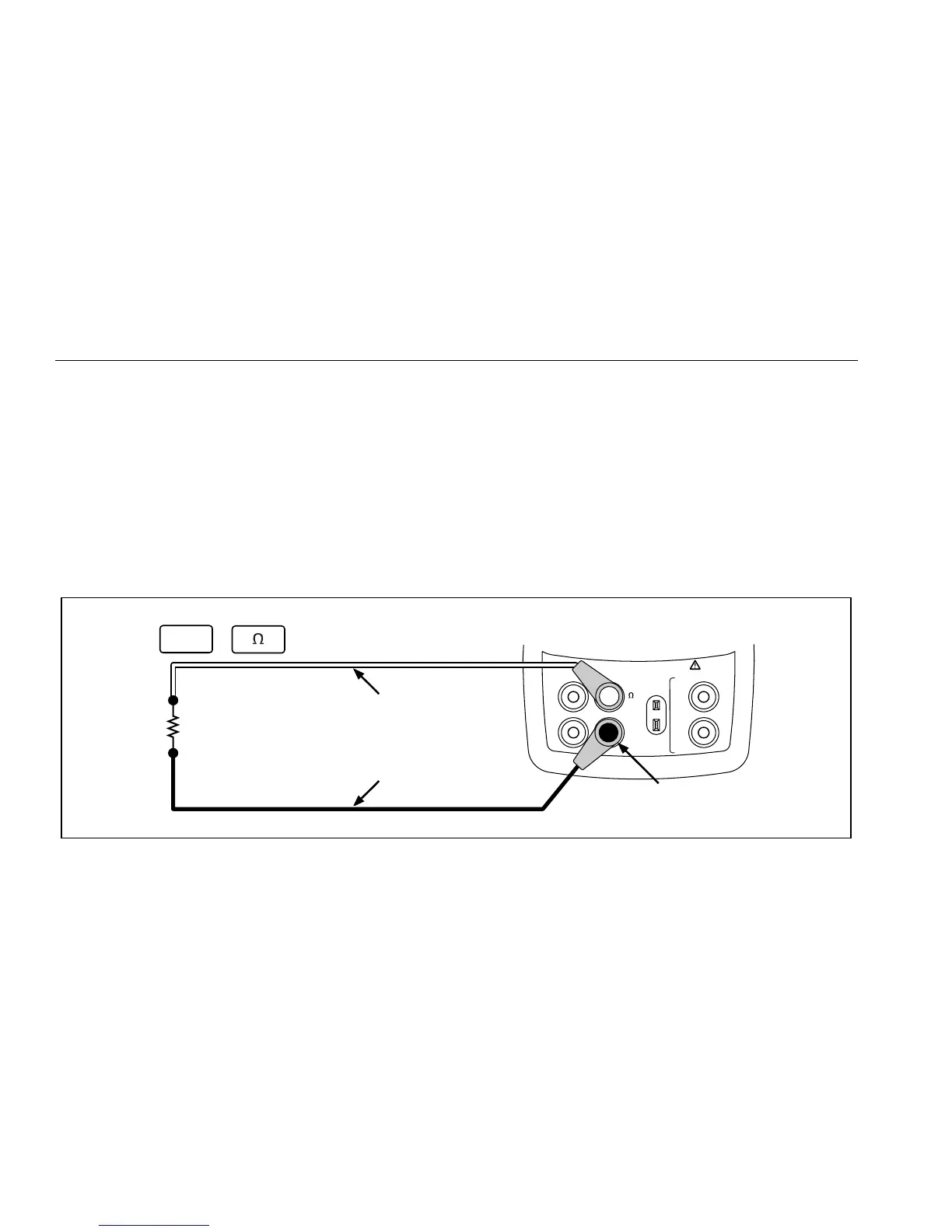

Figure 12. Electrical Sourcing Connections

Fluke 724 Specifications

General

Temperature Range	-10°C to 55°C
Thermocouple Types	J, K, T, E, R, S, B, L, U, N
Current Measurement	0 to 24 mA
Operating Temperature	-10°C to 55°C
Function	Process calibrator
RTD Types	Pt100, Pt500, Pt1000
Voltage Measurement	0 to 10 V
Loop Power	24 V DC
Display	Dual Display
Power Supply	4 AA batteries
Resolution	0.1 °C
Storage Temperature	-20 °C to 60 °C
Battery Life	25 hours
Relative Humidity	0 % to 90 %
Safety Compliance	CSA C22.2 No. 1010.1:1992
