Fluke FTK200 - Measuring Optical Power

Optical Fiber Test Kit
Measuring Optical Power
9
Fiber link
OUTPUT
Optical
connections
Optical patch cord
Optical patch cord
FM150
Fiber Meter
FM150
Fiber Meter
Optical
patch cord
OUTPUT
Measuring optical
power at a source
Measuring optical power
at the end of a link
Optical network interface
card or optical source
Optical network interface
card or optical source
W
FM150
FIBER METER
CLEAR
STORE
dB
dBm
PRINT
REF
SET BAT
RECALL
W
FM150
FIBER METER
CLEAR
STORE
dB
dBm
PRINT
REF
SET BAT
RECALL
Serial
Serial
afz04f.eps

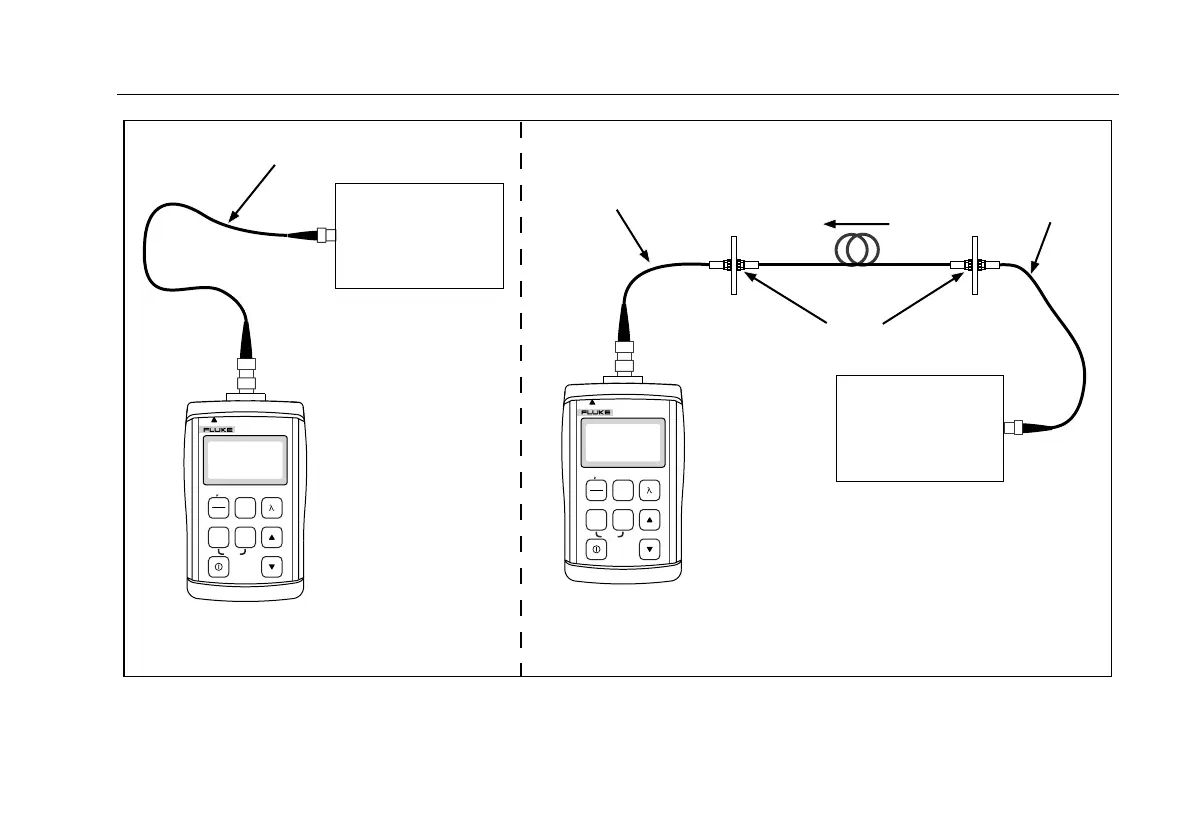

Figure 5. Measuring Optical Power
