Optical Fiber Test Kit
Setting a Reference for Loss Measurements
11
Known-good adapter
FS150 Fiber Source
FM150 Fiber Meter
Known-good patch cords of the
same type as the fiber to be
tested and ST at the meter end
W
FM150
FIBER METER
CLEAR
STORE
dB
dBm
PRINT
REF
SET BAT
RECALL
FS150
FIBER SOURCE
Serial
850
nm
1300
nm
afz05f.eps

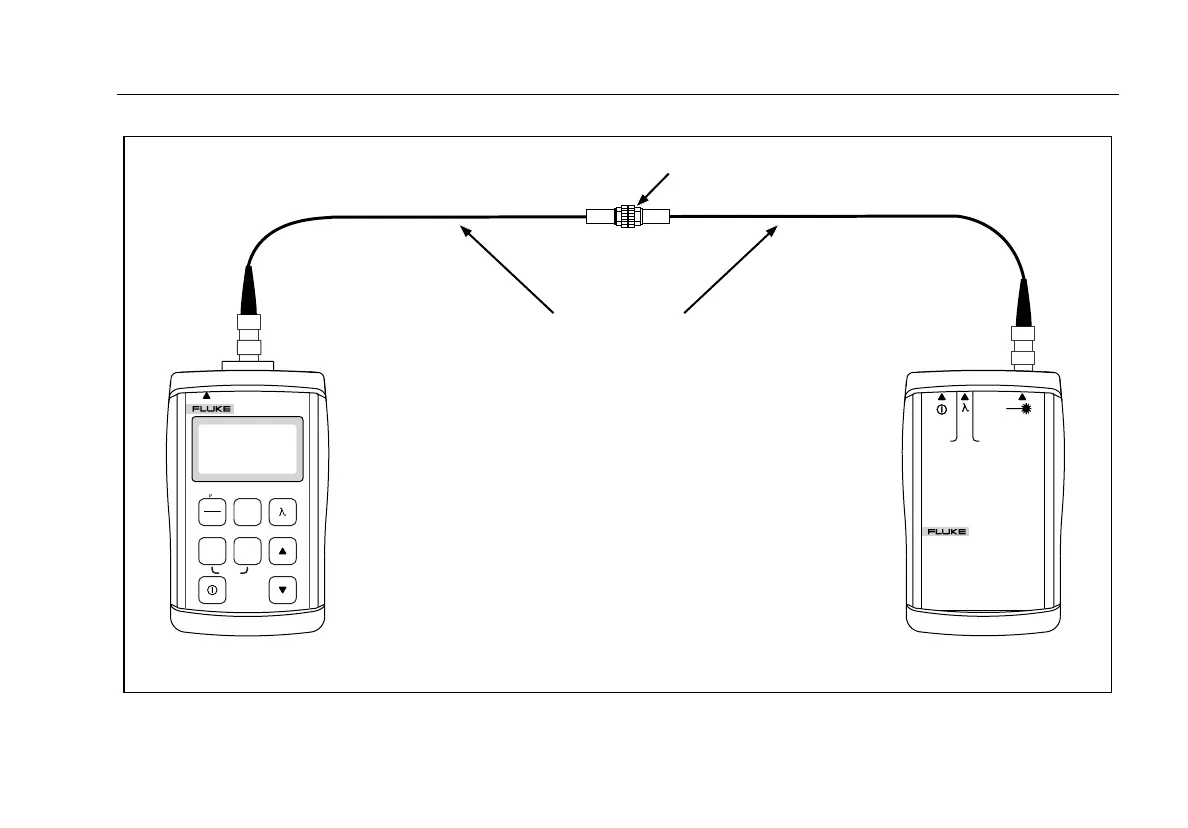

Figure 6. Setting a Reference
