6
Using PoE Power
If the tester is connected to PSE and has negotiated
power from the device, it uses power supplied by the
PSE.
Note

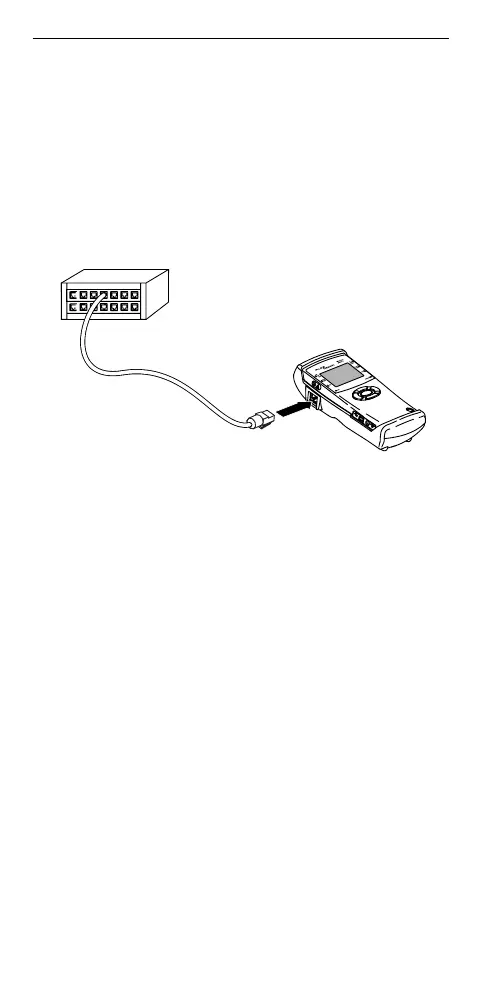

You must use the left RJ-45 jack to connect the tester
to a PoE switch.
IEEE 803.3af
PoE Switch
ekd03f.eps
The tester first attempts to pass PoE power through to
a PD. If such a device is not attached, the tester draws
power from the attached PoE switch.
The PoE LED lights blue to indicate that power is
being drawn from the PSE or that PoE power is being
drawn inline.
