Menus

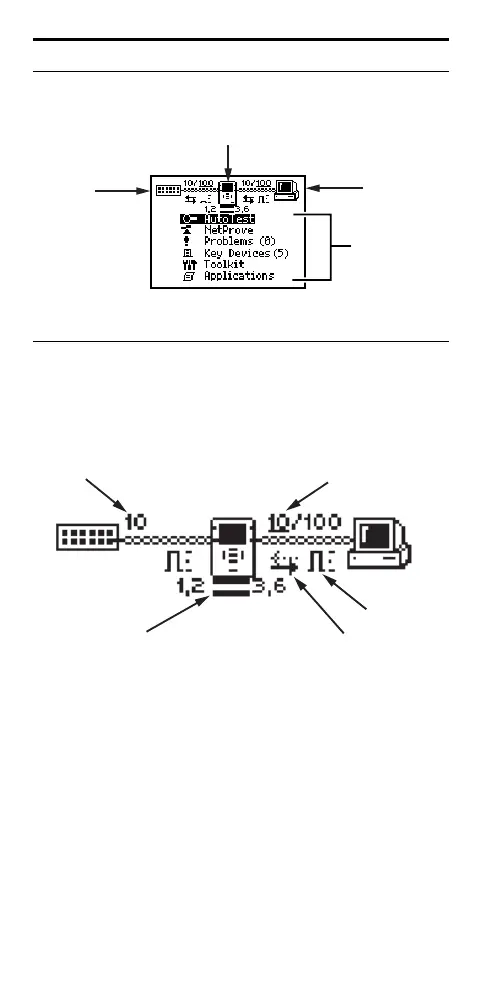

After AutoTest runs, the top-level screen is displayed:
Network Icon
NetTool Series II Icon
PC Icon
Main Menu
ekd06f.eps
Network Diagram
The network diagram at the top of the screen
provides at-a-glance information about the
connection.
Link Speed
Actual Link Speed (underlined)
Link Level
and Polarity
Duplex Setting
(full or half)
Cable Status
(straight or crossed)
ekd07f.eps
