Physical Characteristics
•
High voltage lockout in Talk mode
Physical Characteristics
Housing
See Figure 1.
The TS52PRO Test Set housing is made of high-impact
plastic. The test set provides rugged service and
withstands the rough handling and shocks associated
with field use. The housing permits operation in bad
weather, such as heavy rain or dust storms.
Belt Clips
See Figure 1.
The belt clip can be located at either or both ends of
the housing. It has a spring-loaded, locking clip that
assures a secure connection to belt loops and D-rings.
Both forward folding and backwards folding versions
of the belt clip may be installed. The test set can be
hung by the belt clip in one of two ways: (1) with
keypad and speakerphone facing the user for
convenient access or (2) with the transmitter facing the
user.
The belt clips may be replaced or relocated in the field.
See "Replacing or Relocating the Belt Clip" on page 21.
bfp01.eps

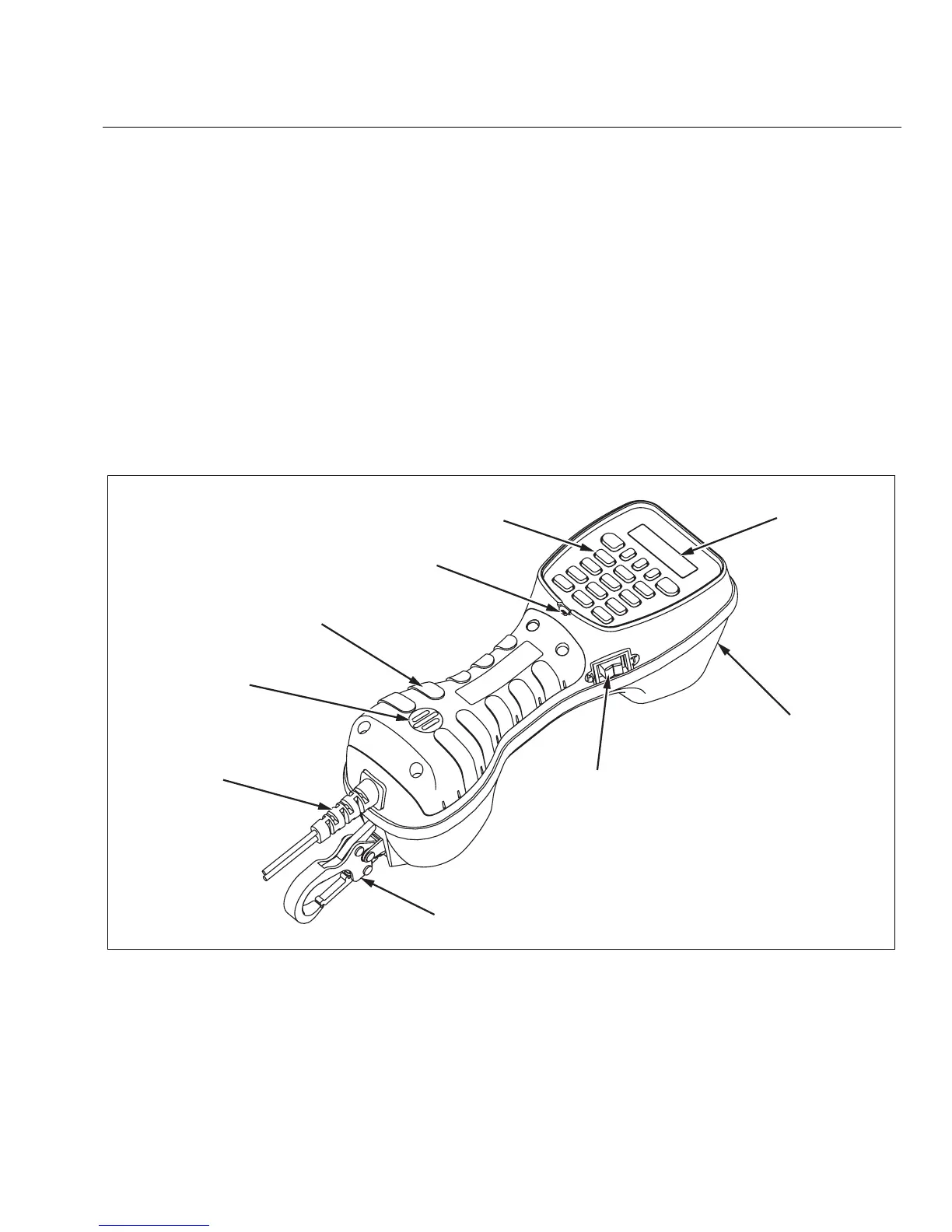

Figure 1. Physical Characteristics
Speakerphone
microphone
Keypad
Battery door
Speaker
Line cord
strain relief
Alternate
belt clip
location
Display
Talk/Monitor
switch
Belt clip
