60

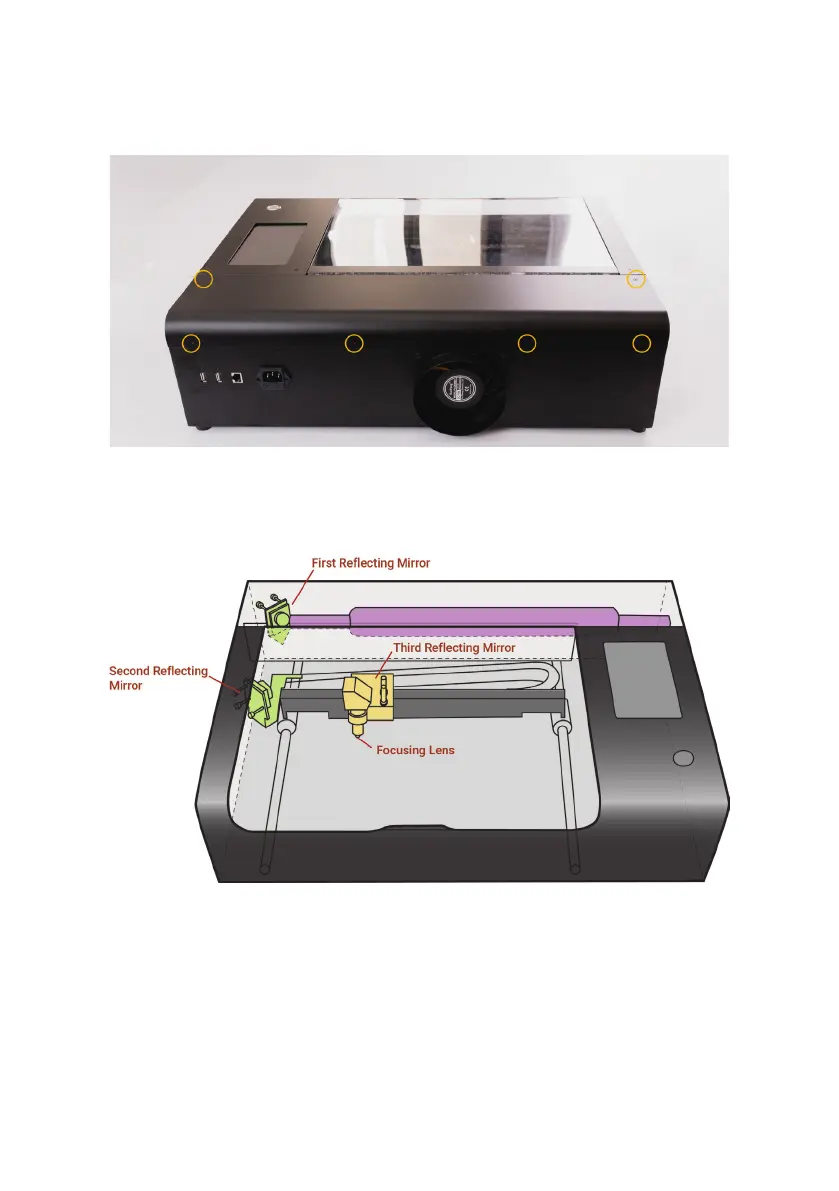

Remove the back lid by unscrewing the 6 star screws with
the hex key in the Accessory Kit.
There are three sets of reflecting mirrors and one set of
focusing lens in beamo.
• First reflecting mirror is located on the left side of the
laser tube when facing the machine.
• Second reflecting mirror is located on the carriage of
the guiding rod on the left side when facing the the
machine.
