61
• Third reflecting mirror is located on the rail of the
X-axis.
• Focusing lens is located inside the lens holder
underneath the third mirror.
First Reflecting Mirror
Goal: Make the 2 dots shot from the top-left and the
bottom-left overlap.
1. Go to touchscreen > Maintain, the laser head will go
back to home position. Then press "Release Motors".

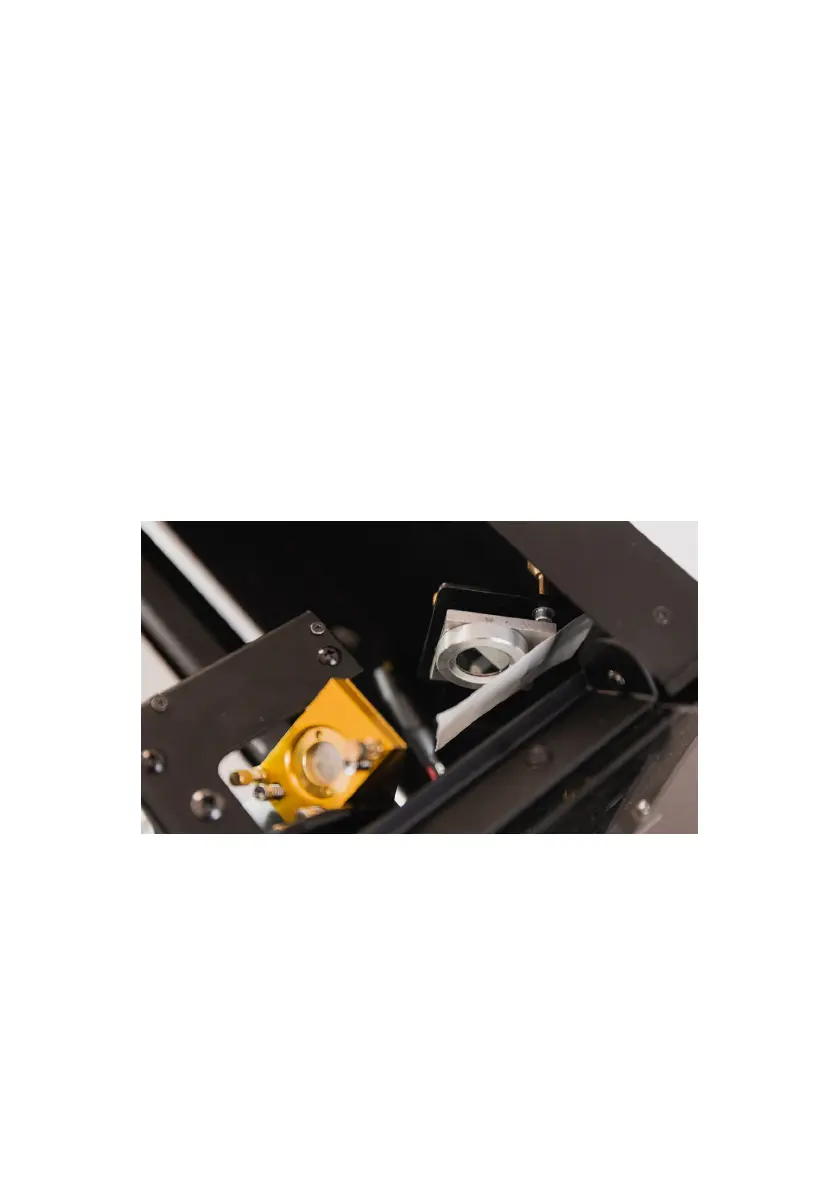

2. Put a piece of tape over the second reflecting mirror.
3. Move the laser head to the top-left positon manually.
Close the lid and press "Laser Pulse".
4. Open the door and check the position of the dot.
This dot is the reference point for adjustment. The
shots made on other positions should be adjusted to
move toward the reference point.
