4.8. 2D measurements

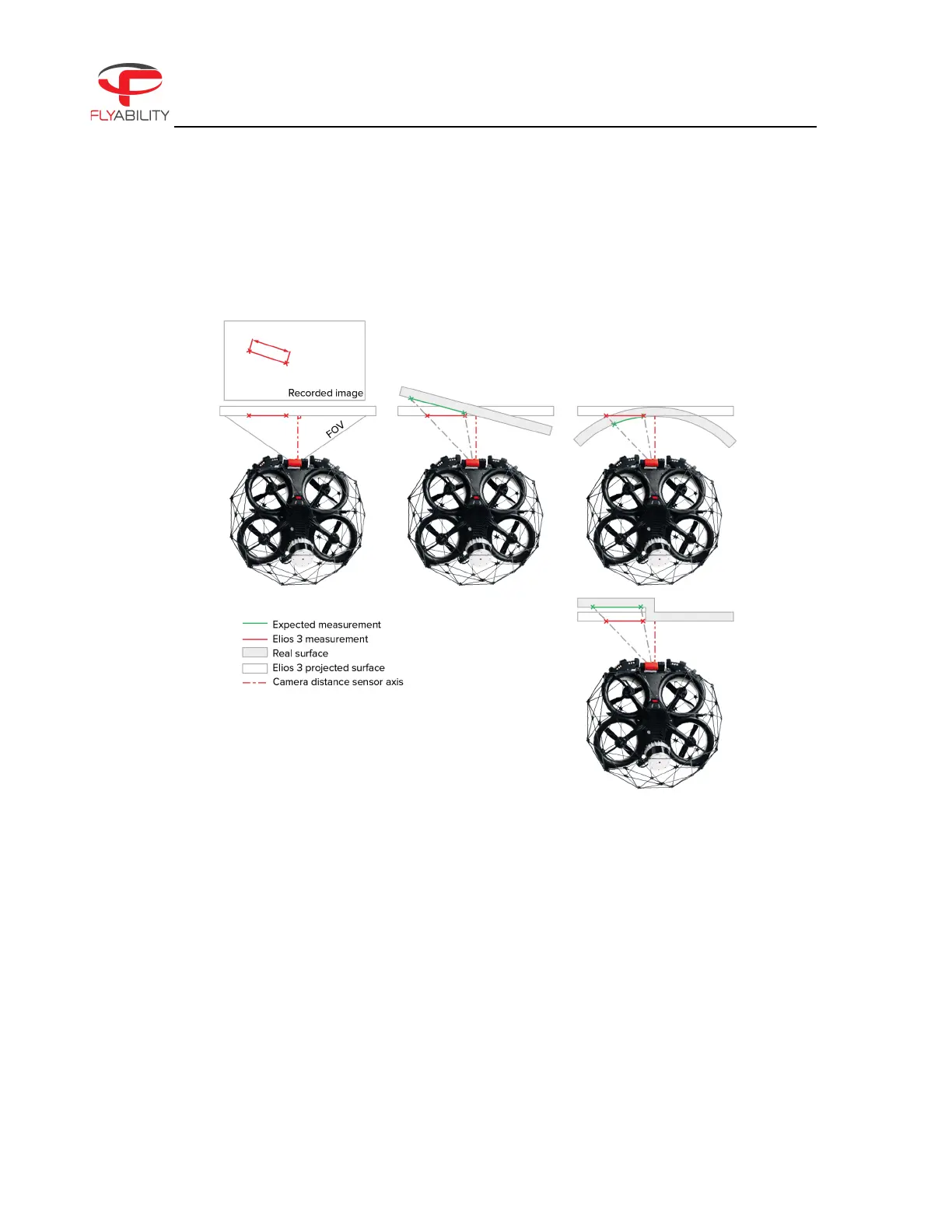

Figure 4.8: Example showing limitations of the 2D measurements considering the geometric constraints.
Limitation: The feature to measure needs to be on a flat surface perpendicular to the camera’s optical axis. The
accuracy of the measurement is ±10% of the measured length with a maximum of ±5mm accuracy.
Thanks to its camera distance sensor, ELIOS 3 is capable of measuring the size of a feature on a flat surface
using Flyability’s Inspector post-processing software.
