4.7. Lighting controls

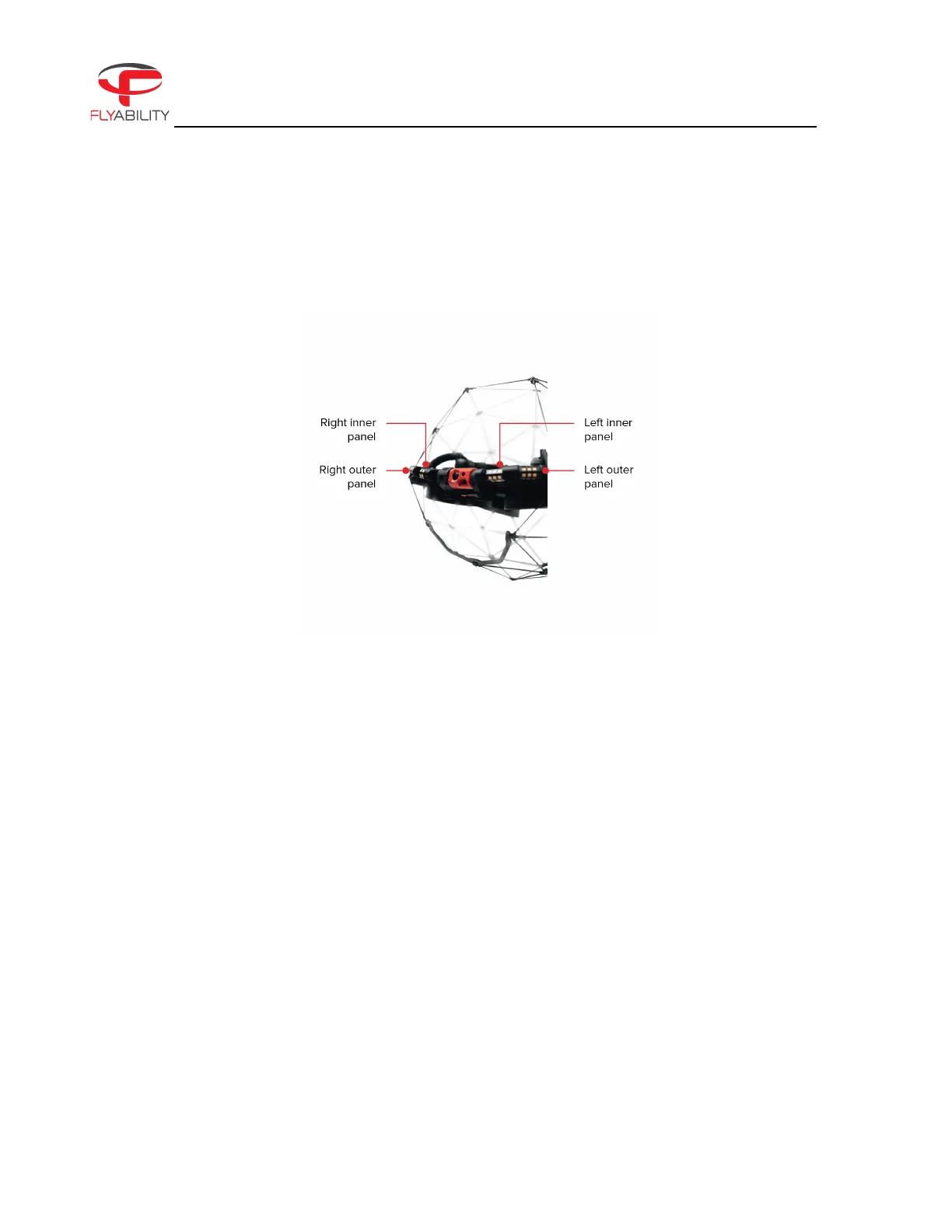

Figure 4.4: Lighting Controls
ELIOS 3 has a smart lighting system composed of several LED panels. The panels can be controlled
independently to offer the best lighting for the inspection footage. The intensity of each panel is adjusted
automatically according to the pitch of the camera head to ensure optimal lighting while saving battery
capacity and flight time.
ELIOS 3 has four separate LED panels:
– Left inboard+outboard panel
– Right inboard+outboard panel
The lighting system has 3 settings:
– Normal—all the panels are lit
– Dust proof light—only the outboard panels are lit
– Oblique lighting—left or right panels are lit, offering improved depth perception of defects such as
pitting or cracks.
