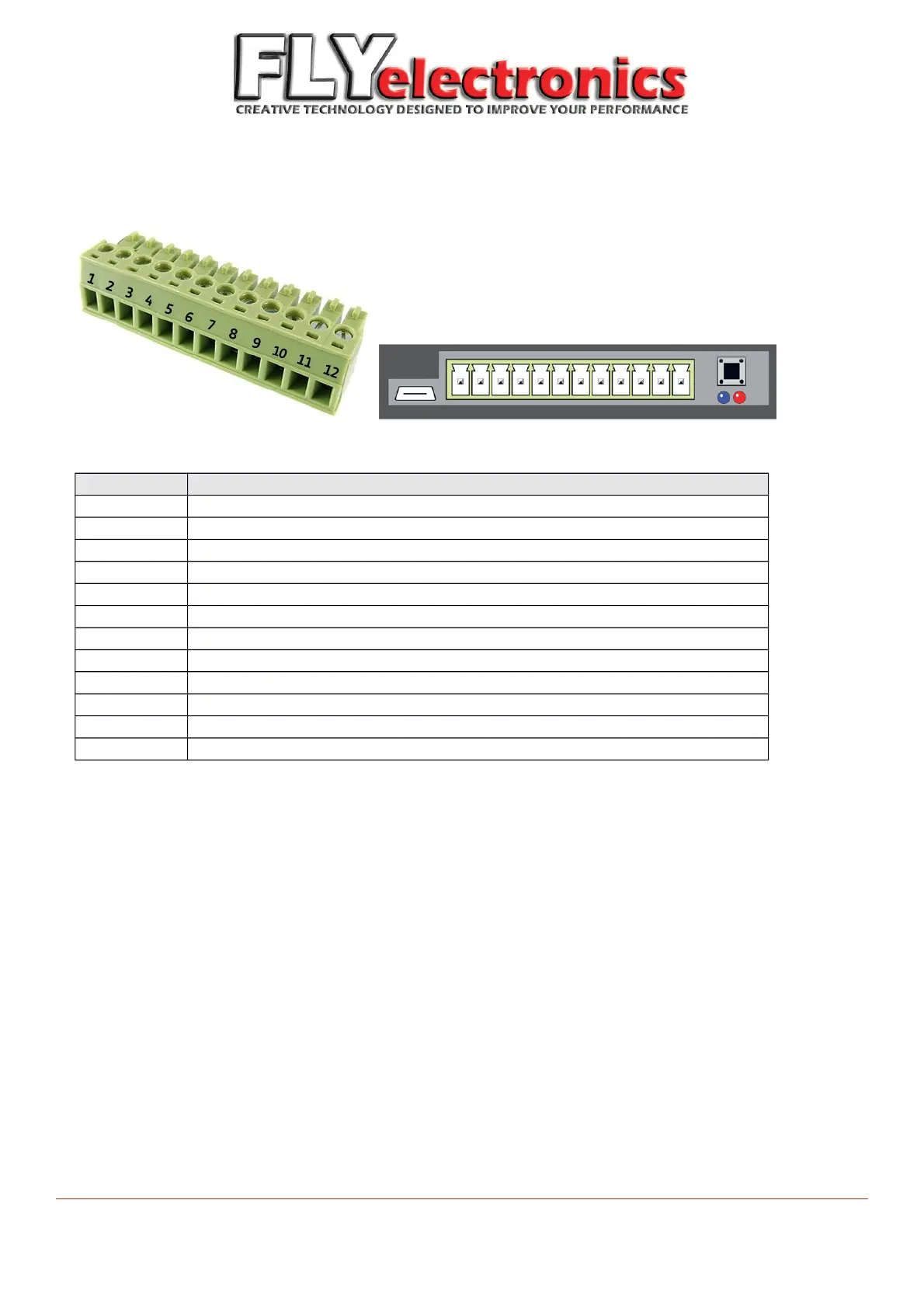

18.2 TRANSMITTER CONNECTOR:
Number
Functionality
1
Encoder input (RPM measurement)
2
PPG Ground
3
Power/charger input +12/+24V
4
Optional - LED- output
5
Optional - LED+ output or Fuel Sensor charge
6
Fuel sensor input
7
Fuel sensor ground
8
Unused
9
T1- input
10
T1+ input
11
T2- input
12
T2+ input
