21. CONNECTING OPTIONAL LED DIODE
Transmitter can operate an additional alerting diode. It gives the user additional alerting source for
overeating the motor. Nevertheless, transmitter alarms the user about overheating even without the
presence of a receiver.

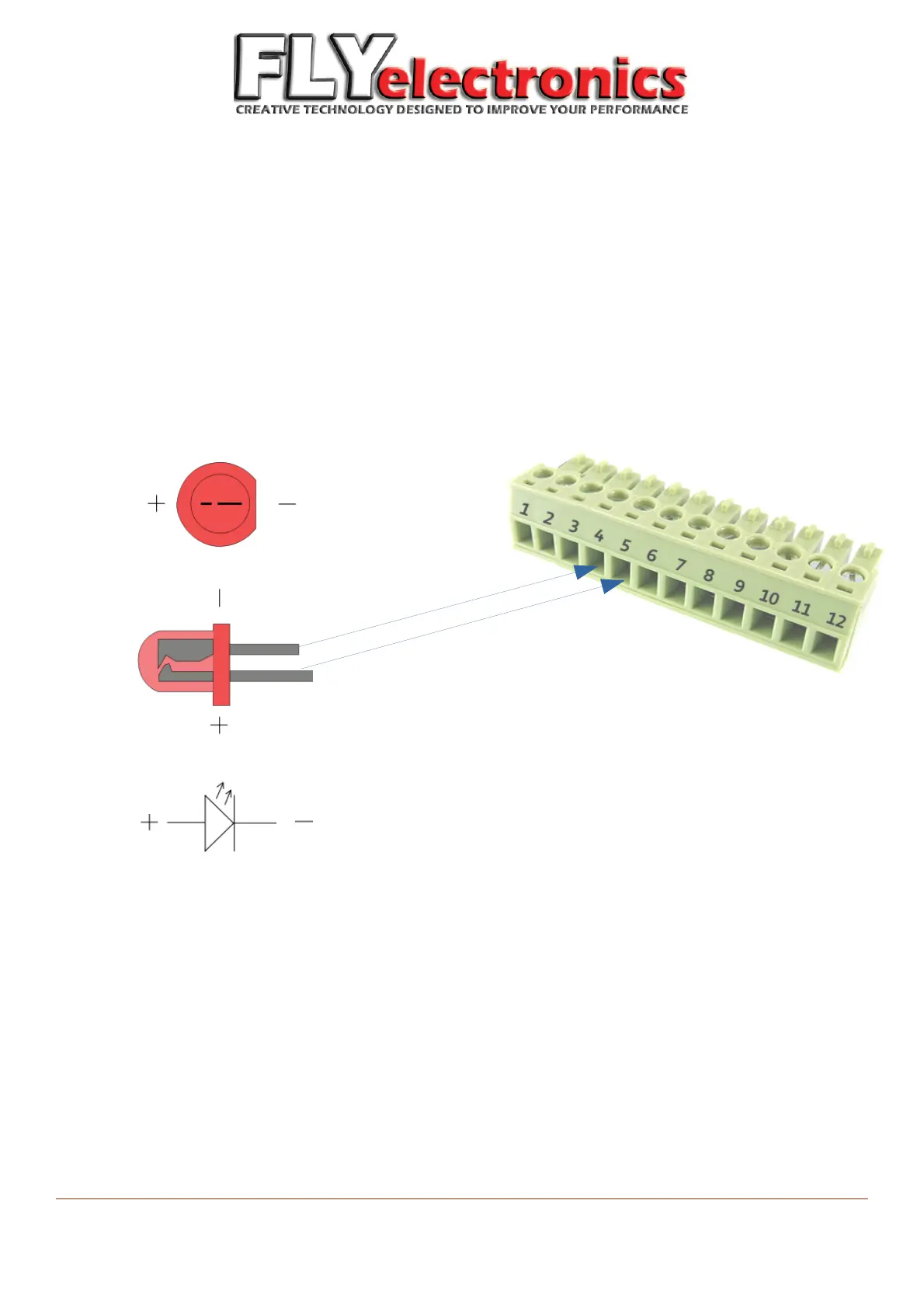

Please see below connection scheme for additional LED diode.
Cathode (-) connect to pin 4,
Anode (+) connect to pin 5,
