37
Installation and Operation Manual
System 2000
Ref. Part No. Description Qty.
1 2345B-P-08 Foam Pump Assy-2002 1
1 2331B-P-01 Foam Pump Assy-2002HP 1
2 3300-0092 Relief Valve (Inc. brass tee fitting) 1
3 3304-0025 Cal/Inject Valve 1
4 2404-0271 Reducer 1
5 2401-0038 1/2 inch NPT Tee 1
6 3350-0143 Line Strainer (3/4 inch NPT) 1
7 0704-8600A1 Flange Adaptor 1
8 2530-0092 Speed Sensor 1
9 2738-2003 Coupling Body 3/4 inch [19 mm] 1
10 2728-0001 Rubber Disc 1
11 2738-2002 Coupling Body 5/8 inch [16 mm] 1
12 3900-0049 Gear 1
13 2570-0016 Electric Motor (.75 hp; 12 V) 1
13 2570-0017 Electric Motor (.75 hp; 24 V) 1
14 2840-0071 Shield 1
15 2527-0139 Digital Display Control 1
16 2530-0097 Terminal Block 1
17 2527-0031 Diode Block Assembly 1
18 2527-0069 Motor Driver Box (12 V) 1
18 2527-0153 Motor Driver Box (24 V) 1
19 1700-0120 Grommet 1
20 1450-0014 Plastic Cap 1
21 2910-0016 Clamp, Vinyl Coated 2
22 2530-0087 Capacitor (154000uF) 1
Ref. Part No. Description Qty.
23 1510-0086 Mounting Bracket 1
24 2404-0182 Injector Fitting (optional) 1
25 2510-0028 Tank Level Sensor (Vertical) 1
2510-0032 Tank Level Sensor (Side) 1
26 2520-0048 Control Cable (6 ft. [2 m] Lg) 1
2520-0049 Control Cable (12 ft. [3 m] Lg) (Std) 1
2520-0050 Control Cable (20 ft. [5 m] Lg) 1
27 2520-0042 Low-Tank Level Sensor Cable 1
28 2520-0045 Flowmeter Cable (6 ft. [2 m] Lg) 1
2520-0046 Flowmeter Cable 1
(12 ft. [3 m] Lg) (Std)
2520-0047 Flowmeter Cable (20 ft. [5 m] Lg) 1
29 1450-0012 Plastic Terminal Protector 1
30 3430-0351 RFI Kit for Controller (4 pcs) 1
3430-0353 RFI Kit for Flowmeter (4 pcs) 1
31 6032-0012 Placard
32 3320-0055 Check Valve, 1/2 inch 1
33 2520-0107 Ground Strap 1
34 3375-0012 Pulse Hose 1
35 2402-0017 Nipple 1
36 2404-0272 Adapter Fitting 1
37 2900-0049 By-Pass Hose 1
38 2404-0306 Valve Cap, Ported 1
39 2400-0035 Elbow 1

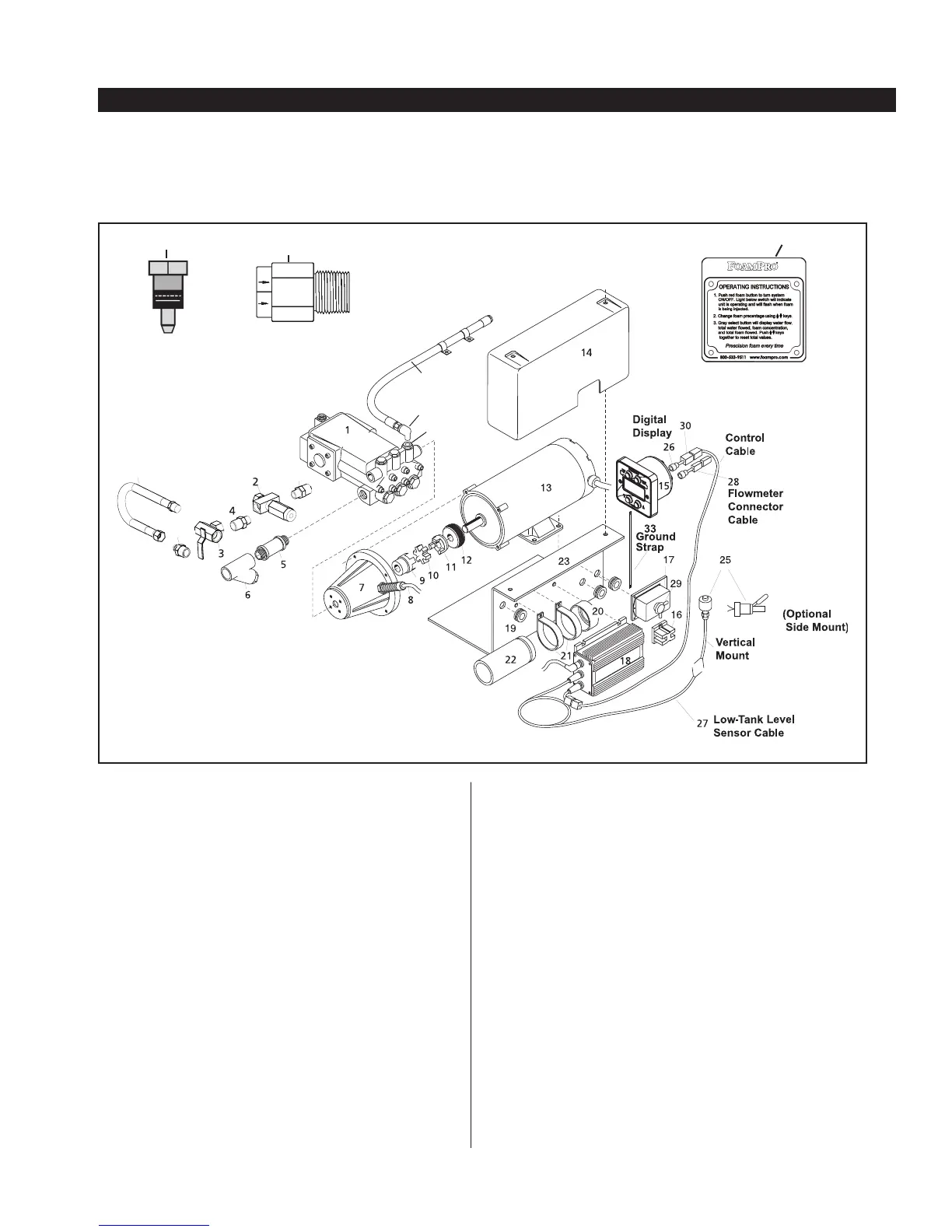

Parts Identification for System 2002
31
32
24
(optional)
34
37
36
35
38
39
To Next Page
