FoamPRO 2002 Series - Installation Drawings

39
Installation and Operation Manual
System 2000
(Please make a photocopy for your use.)
14 Installation Drawings

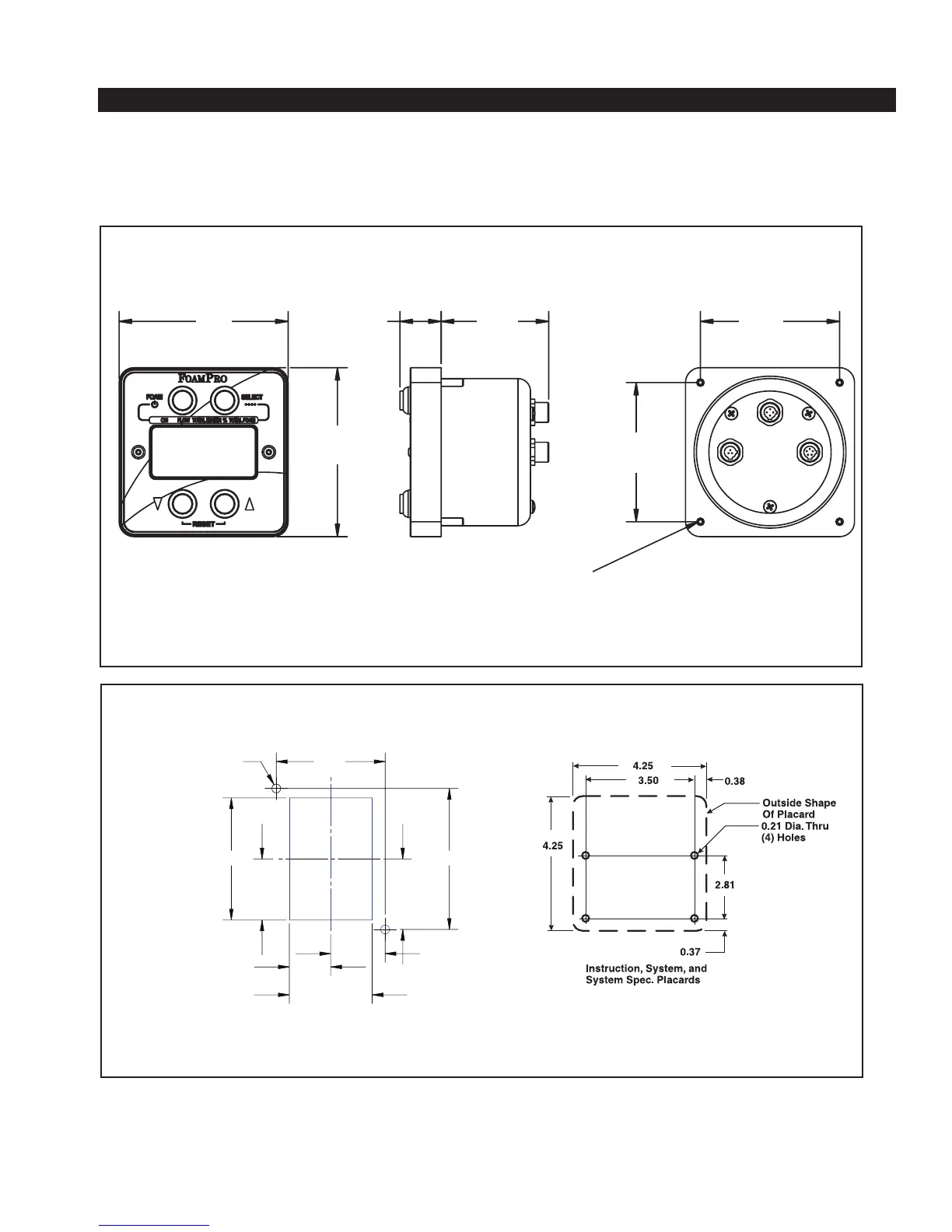

Cutout Dimensions for Display Control Module
Display Requires 3-7/8’’ [98 mm] Dia. Hole
Cutout Dimensions for
System Spec. Placard
4.25
[108]
4.25
[108]
1.04
[26.3]
2.70
[68.7]
3.50
[88.9]
#10 24UNC x 7/16 DP
(4) Studs for Mounting
3.50
[88.9]
2x Mounting Location
for Thru Holes or Tapped
Holes or #4 Fastener
Remote Start/Stop
1.56
1.75
1.19
.78
.59
.88
1.01
2.02
