6.6.5 set related zone: zone 1+zone 2+related time+mode
The options as belows
0>disable related zone mode
1>EXIT-ENTRANCE dual trigger mode: trigger zone 1 or 2 seperately will
not trigger alarming. Trigger zone 1 first, then during the period of related
time trigger zone 2, then both zone 1 and 2 trigger alarm.Trigger zone 2
first, then trigger zone 1 will not trigger alarm.
Z
C
Z
C

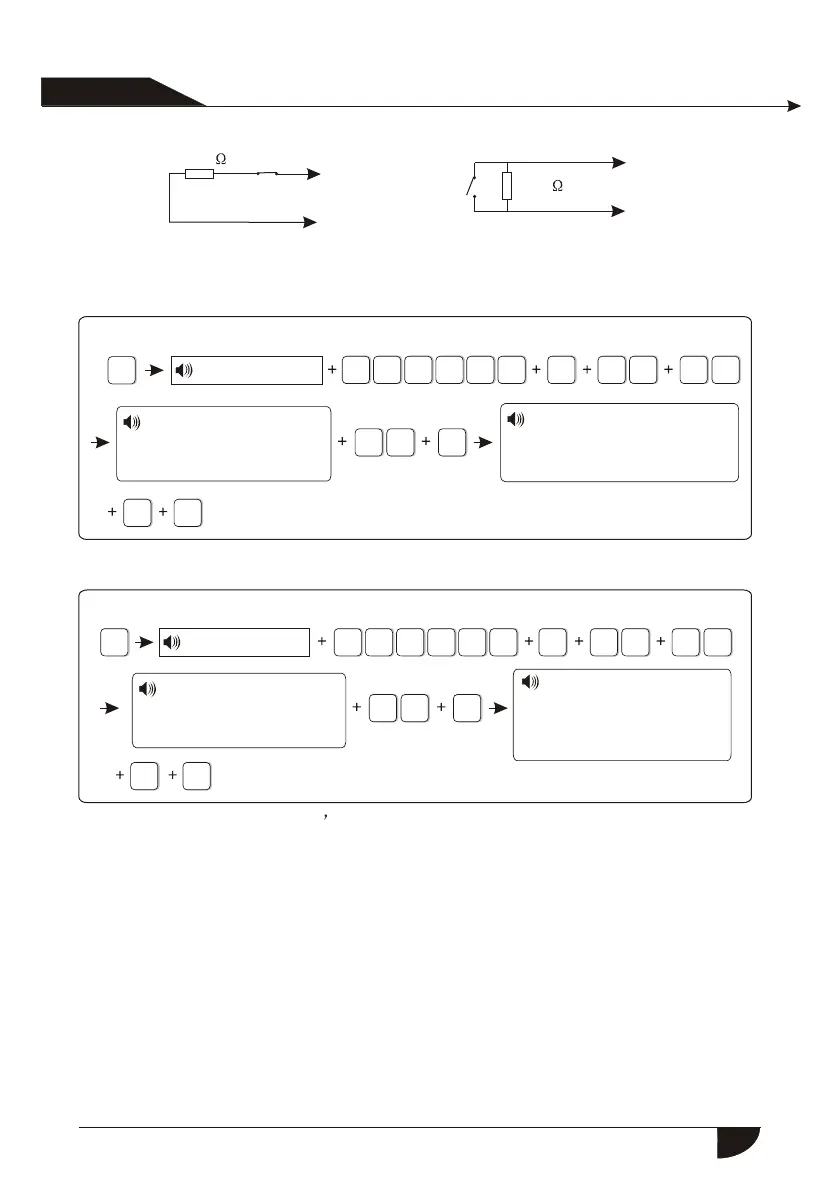

User manual
EOL loop
N/C wiring diagram
EOL loop
N/O wiring diagram
6.6.4 set wired zone response speed(factory default is 500 millisecond)
Press[*] for 3 seconds
Enter password
Example: set zone 35 as N/O loop type
Press[*] for 3 seconds
Enter password
Note: Normall the detector s response speed is 500 millisecond, high speed
response detector like vibration detector is 10 millisecond
Please enter the zone
number to modify
Press confirm key to save,
Pressback key to exit.
Please choose loop type:
1.EOL 2.N/C, 3.N/O
Press confirm key to save,
Pressback key to exit.
Please enter the zone
numbEr to modify
Press confirm key to save,
Pressback key to exit.
Please choose loop
response speed: 1. 500ms,
2. 10ms
Press confirm key to save,
Pressback key to exit.
