154
[FV13600( X)05/94]
10-1/2 pica
art:0021203-A

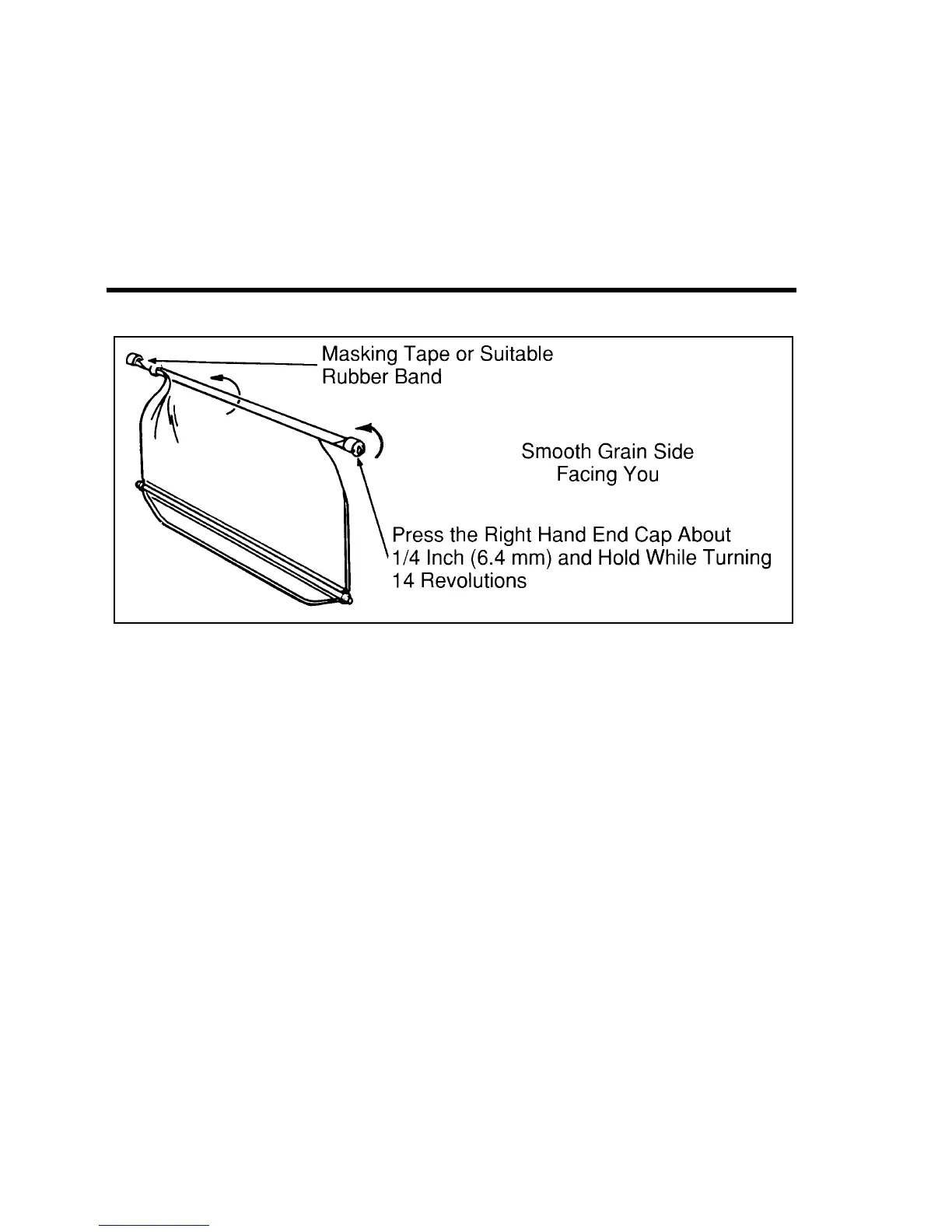

Figure 2
*
[FV13700( X)05/91] 8. Let go of the right end cap. The clutch should now engage
and stop the shade from losing its spring tension.
*
[FV13800( X)05/91] 9. Unfold the vinyl and place it into the end cap slots.
*
[FV13900( X)05/91] 10. With the vinyl fully wound around the roller tube, insert the
shade into the side mounting brackets. NOTE: The opening
for the right mounting bracket is narrower than the left.
*
[FV14000( X)05/91] 11. Check to see that the shade operates properly.
