42
[SR15170( X)06/95] 6. Place child on the child seat cushion. Then position the right
shoulder belt over the child’s shoulder as shown in Figure 6.
Insert the right safety belt tongue into the single opening of
the crotch safety belt buckle as shown in Figure 7.
[SR15175( X)06/95]
17-1/2 pica
art:0090177-A

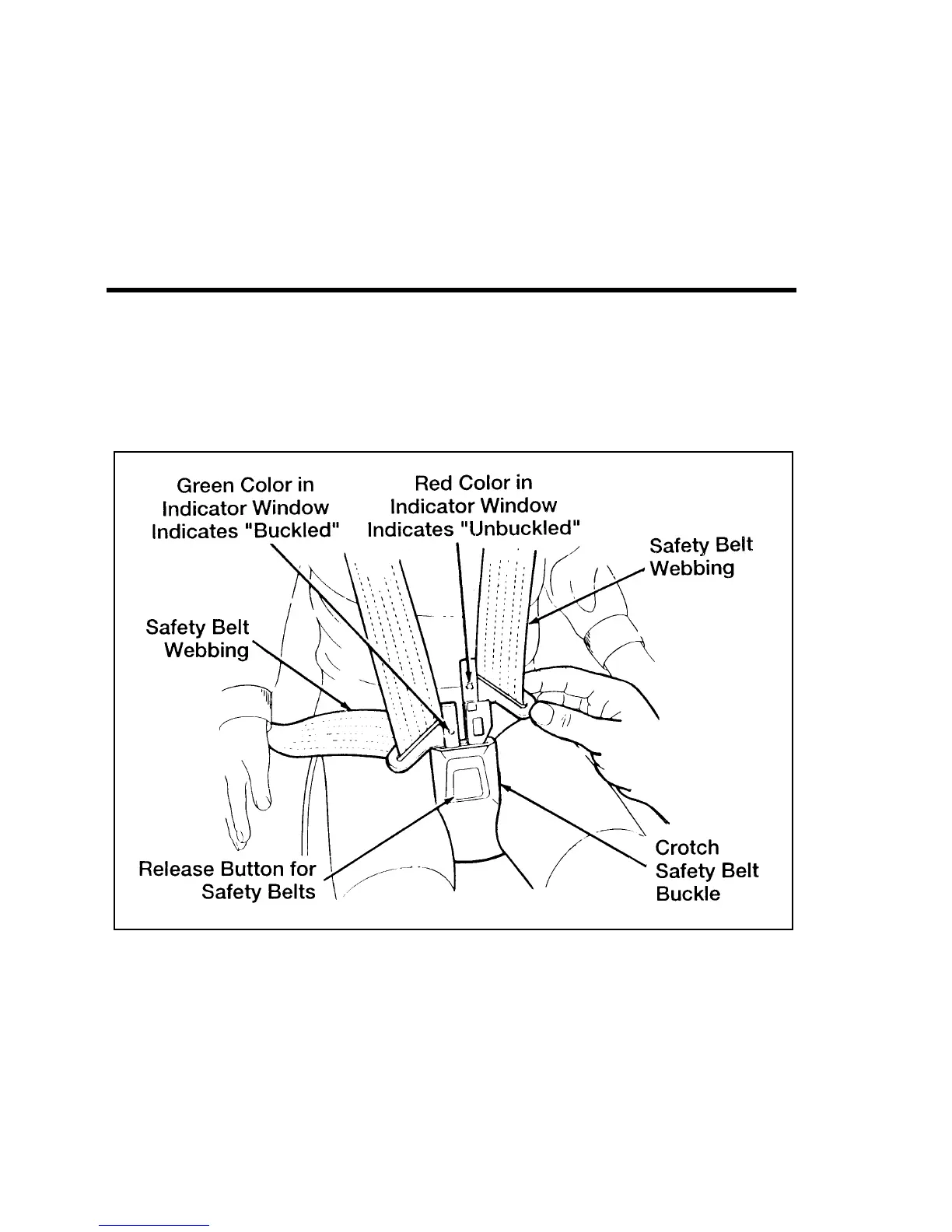

Figure 7: Fastening the crotch safety belt
[SR15180( X)09/95]
NOTE: Read the following steps carefully to become familiar
with the color indicator windows located on each
safety belt tongue and the chest clip. When either of
the tongues or the chest clip is unfastened, the color
red appears. When the tongues and/or the chest clips
are properly fastened, the color green appears.
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996
