Safety
Restraints
47
[SR15220(
X)10/94]
10.
Tug
on
the
crotch
safety
belt
buckle
and
the
chest
clip
to
ensure
they
are
properly
fastened.
Refer
to
Figure
12.
[SR15225(
X)06/95]
24
pica
art:0090183-B

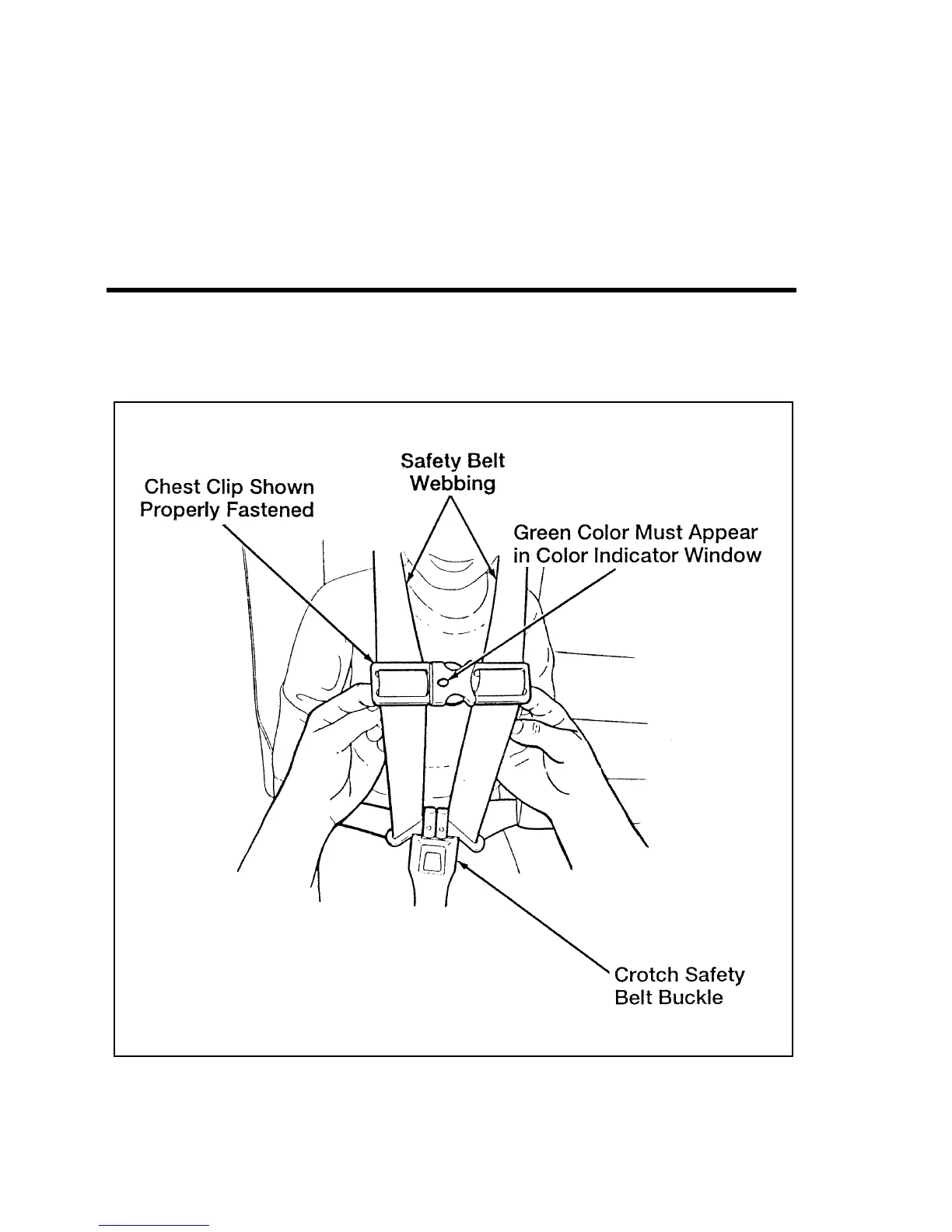

Figure
12:
Securing
the
chest
clip
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996
48
