To fold down the rear split seat:
[FV29101( X)10/94] 1. Push the lower release handle (located on side of seat)
downward to unlatch the seat back latch.
[FV29201( X)10/94] 2. Rotate the seat downward into the latched load floor
position.
[FV29251( X)09/95]
NOTE: When you hear a “click” type sound, this ensures the
seatback will be in the latched load floor position.
[FV29301( X)10/94]

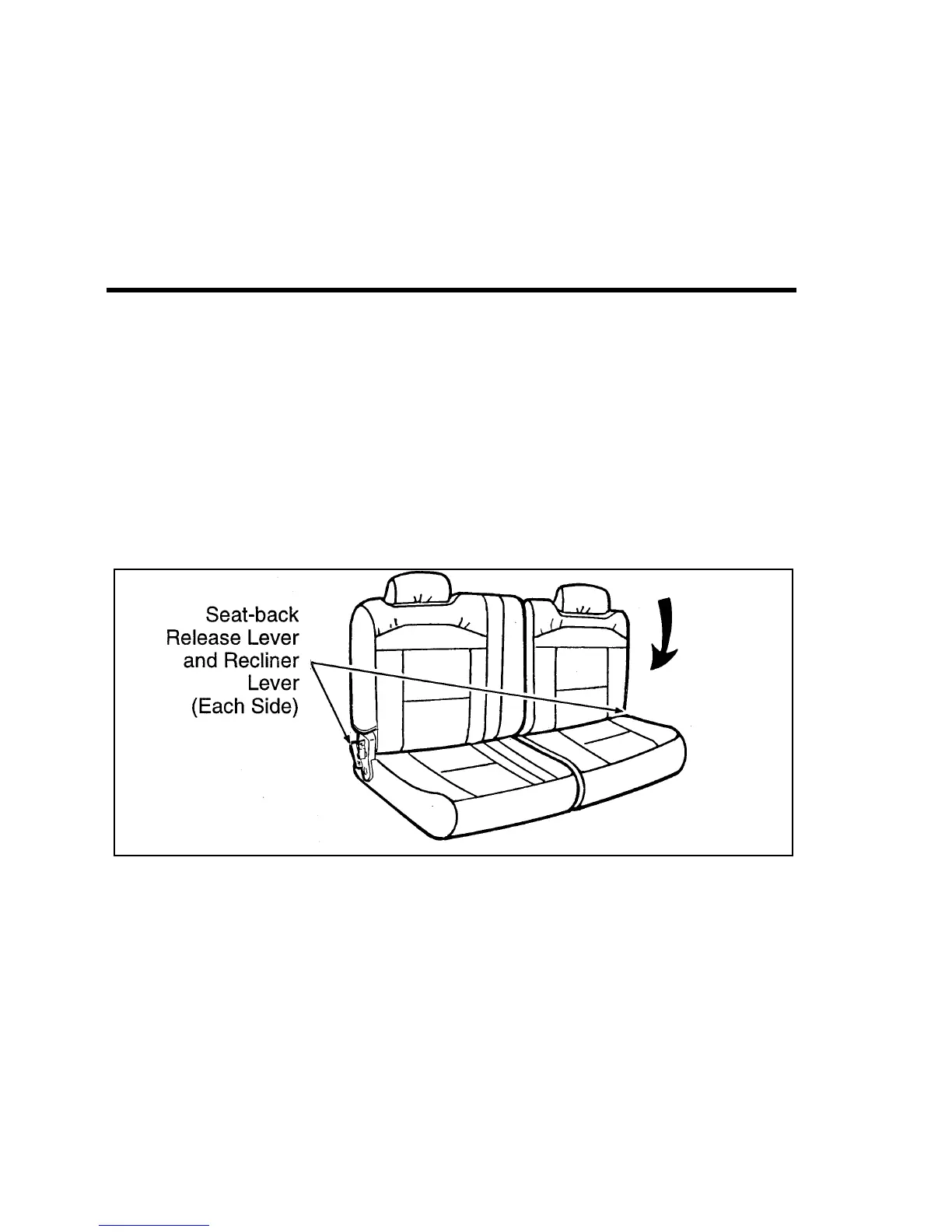

10-1/2 pica art:0020664-E
Folding rear seat (four door model)
[FV29401( X)08/94]
To return the seat to the upright, locked seating position:
[FV29501( X)10/94] 1. Push downward on the upper outboard corner of the
seatback and hold.
[FV29601( X)10/94] 2. Lift the lower release handle upward to unlatch the seat
back latch.
[FV29701( X)10/94] 3. Rotate seat upward until seat back latches in the upright
position.
