Ford 1996 Explorer - Front Jacking Position; Rear Jacking Position

308
[RE18350( X)10/94]
10-1/2 pica
art:0021220-A

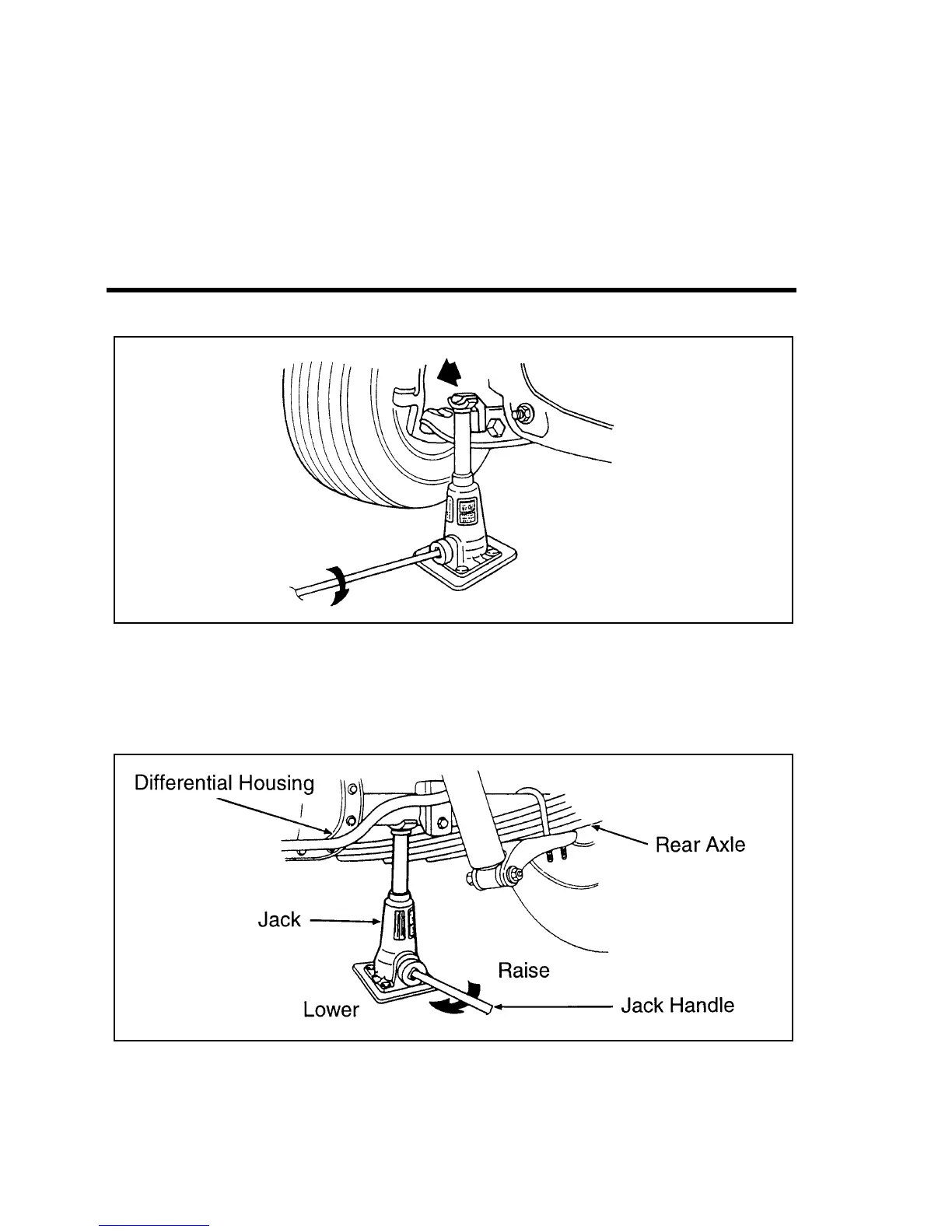

Front jacking position
[RE18401(ALL)06/94]
c. Turn the jack handle clockwise until the wheel is a
maximum of one inch off the ground.
[RE18601( X)06/94]
10-1/2 pica
art:0020603-D
Rear jacking position
[RE18650(ALL)09/95]
NOTE: Do not use the differential housing as a lift point.
File:12unrex.ex
Update:Thu Feb 29 09:14:34 1996
