Safety Restraints
29
[SR13000( X)08/94]
17-1/2 pica
art:0021130-B

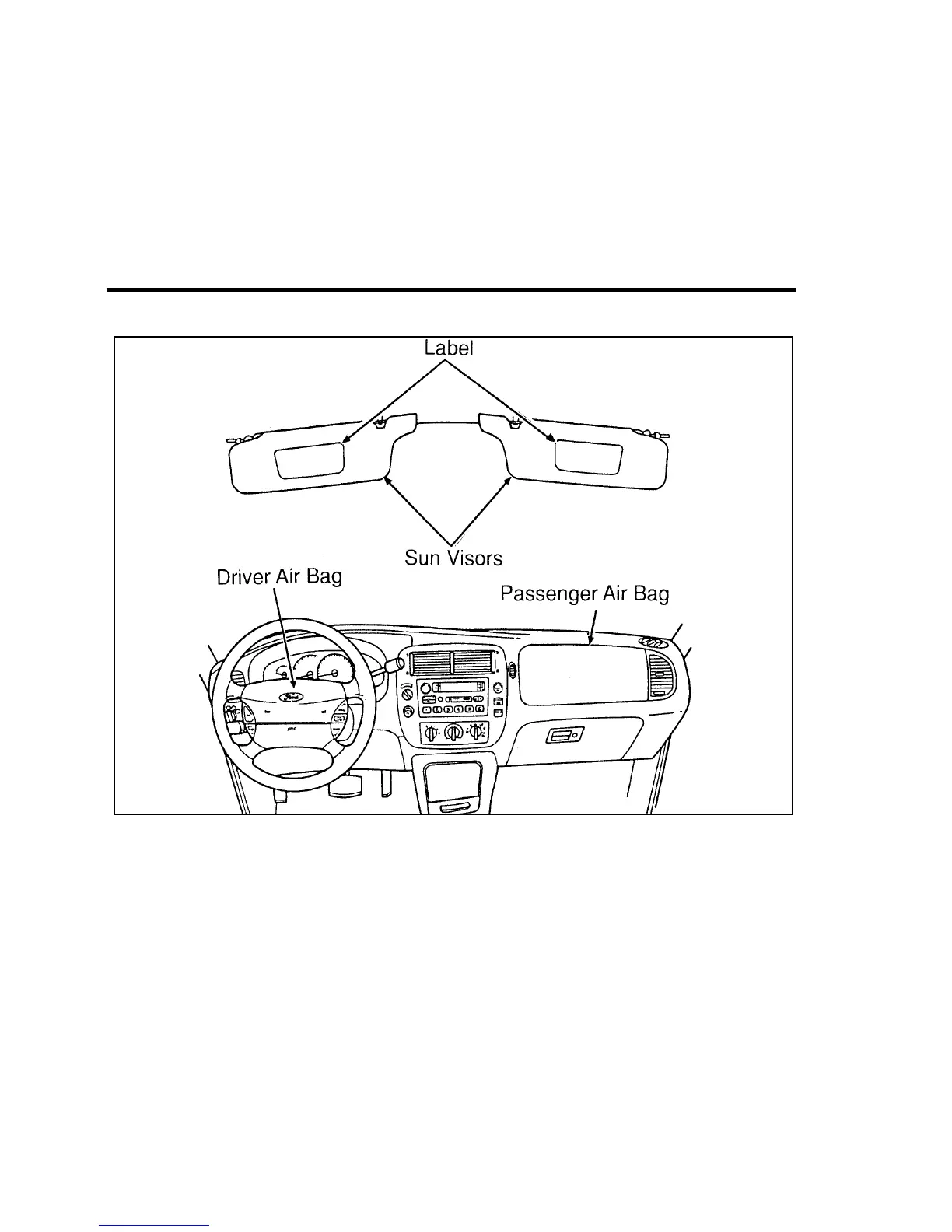

The location of the air bag and warning labels
*
[SR13010(ALL)07/95]
If a collision occurs, the sensors sense the severity of the impact
and activate the air bags if necessary. The air bag system is
designed to deploy in frontal and front-angled collisions more
severe than hitting a parked vehicle (of similar size and weight)
head-on at about 28 mph (45 km/h). Because the system senses
the crash severity rather than vehicle speed, some frontal
collisions at speeds above 28 mph (45 km/h) will not inflate the
air bag.
*
[SR13020(ALL)12/95]
When the sensors activate the system, the air bags inflate
rapidly, filling with non-toxic nitrogen gas in a fraction of a
second. Immediately after inflation, the air bags deflate by
releasing the nitrogen gas through vent holes. The whole
process takes place in a matter of seconds.
