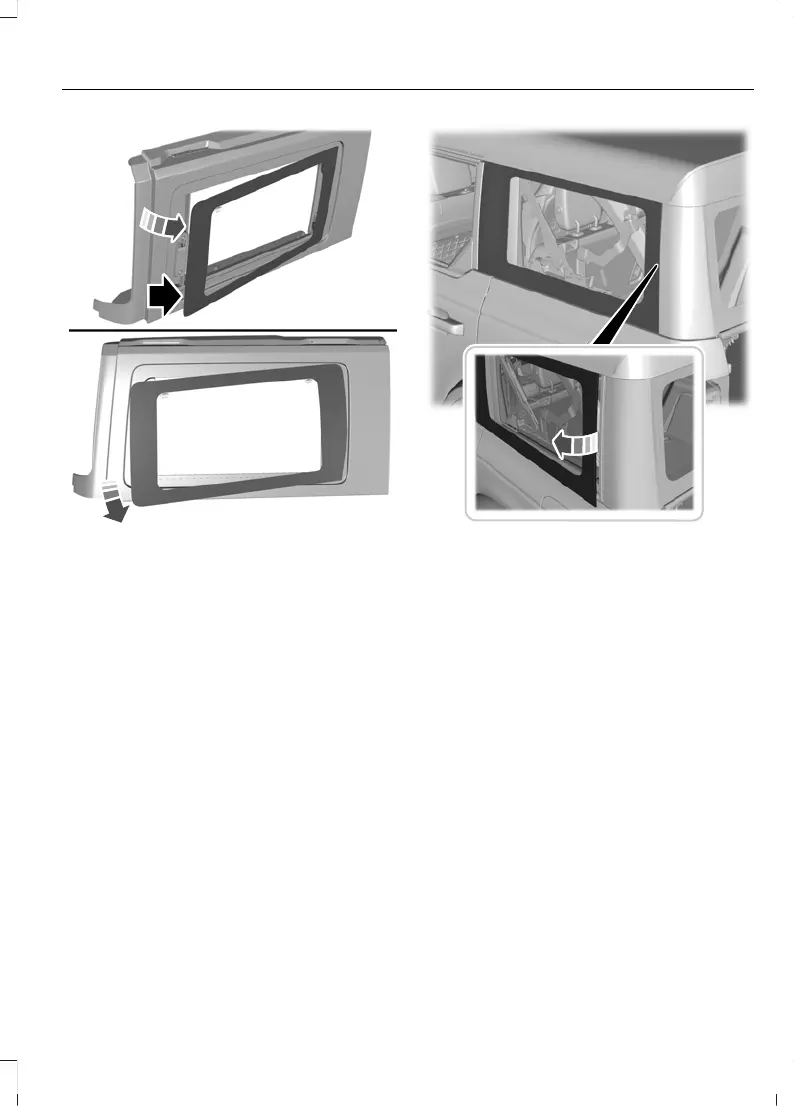

2. Rotate the quarter window while
pulling down to separate the glass
from the frame.
To install the glass back on your vehicle:
1. Rotate the quarter window in to the
rubber seal.
2. Push the rear glass into the latch
mechanism. The latch engages when
correctly installed.
REMOVING AND INSTALLING THE
REAR QUARTER WINDOWS -
VEHICLES WITH: SOFT TOP
The following procedure shows the driver
side rear window, passenger side similar.
1. Release the rear edge of the panel by
pulling the fabric out of the slot.
335
2021 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202101, First-Printing
Removable Vehicle Components
