Ford Bronco 2021 - Page 340

E347135

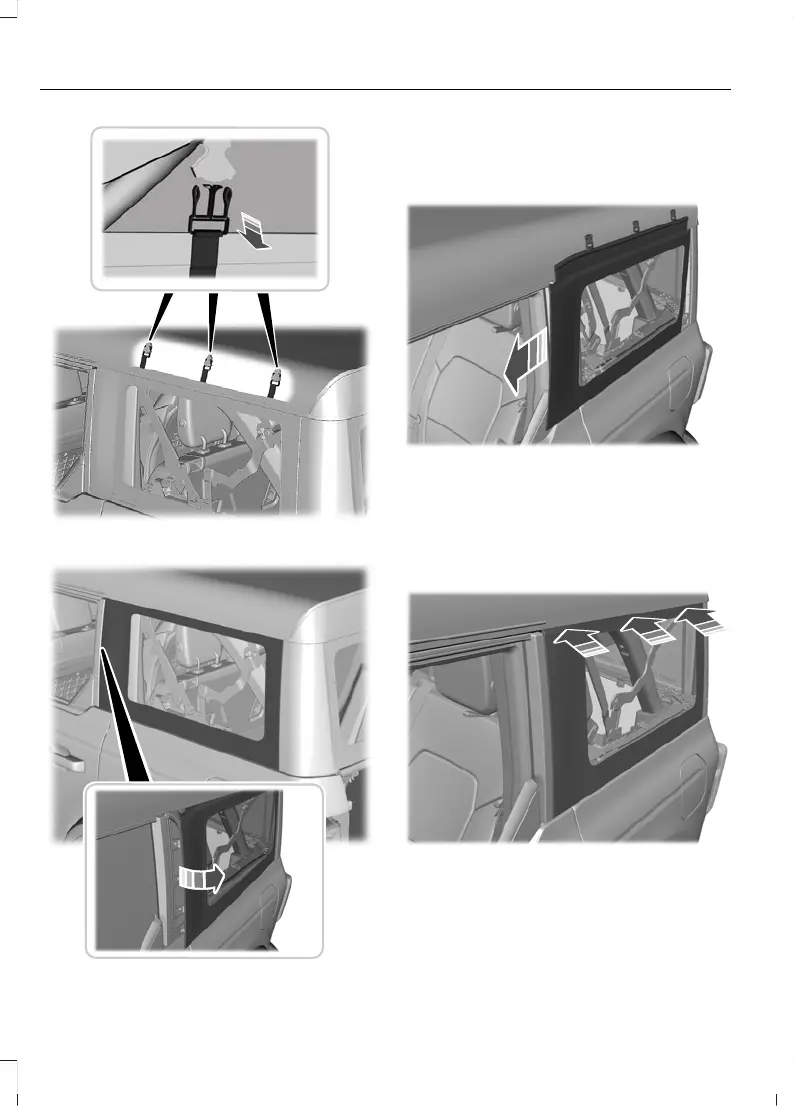

2. Unbuckle the three clips at the top.
E347136
3. Release the front edge of the panel by
pulling the fabric out of the slot to
remove.
E347137
4. Slide the bottom panel forward out of
the slot to remove.
5. To install the rear quarter window,
perform the steps above in reverse
order.
E347138
6. When installing the rear quarter
windows, make sure the window is
tucked under the tension cable.
336
2021 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202101, First-Printing
Removable Vehicle Components
