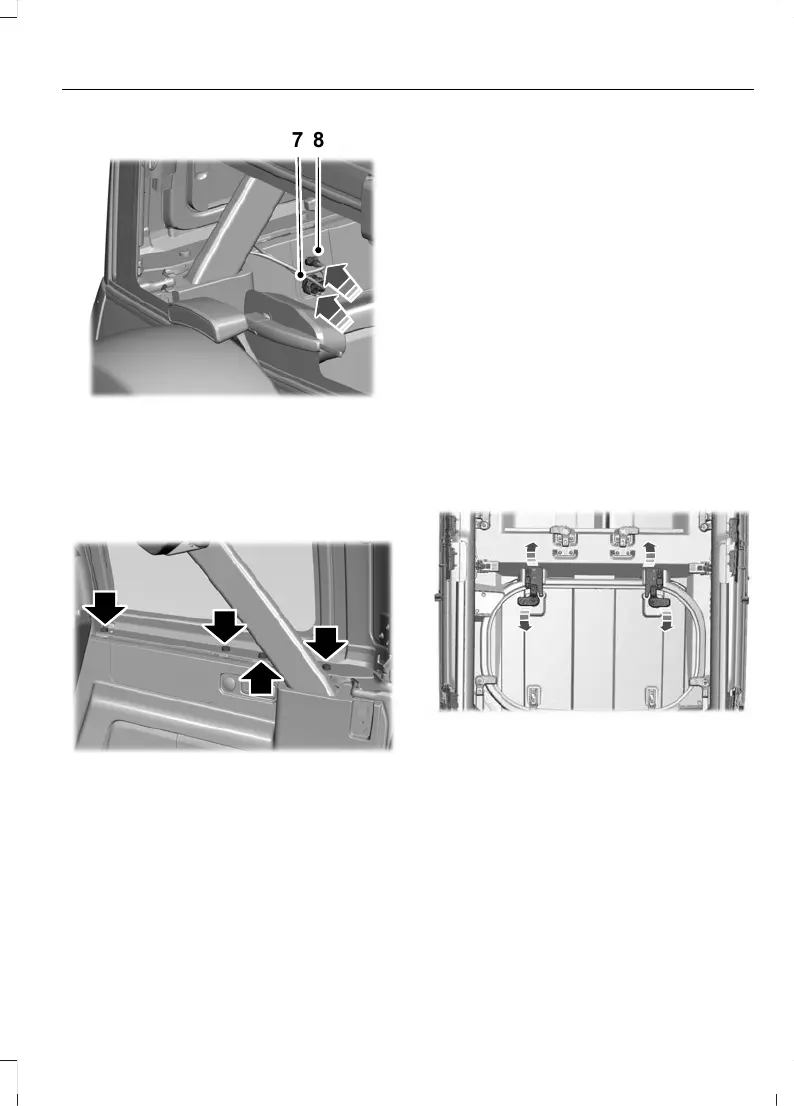

7. Secure the wiring harness to the body
side by plugging it into the receptacle
and pushing up on the locking tab.
8. Secure the washer hose by snapping it
into the top of the body side
receptacle.
9. Remove the four fasteners on each side
of your vehicle that secure the rear roof
panel to the vehicle using the provided
head driver and ratchet.
10. With the tailgate window open, grab
the opening with one hand and
slightly lift with the other hand. Lift
the rear roof panel straight up and
off. Place the rear roof panel on a soft
surface to prevent damage.
Note: Store the rear roof panel with the
tailgate window open to prevent damage
to the glass seal.
11. To install, reverse the removal
procedure. Torque the fasteners that
secure the rear roof panel to your
vehicle to 15 ± 2 lb.ft (20 ± 3 Nm).
Note: Make sure the locating pins on the
rear roof panel sit flush in your vehicle when
installed.
Note: Do not overtighten the fasteners. You
can strip the fasteners if they are
overtightened.
Removing and Installing the
Modular Roof Panel (If Equipped)
Store the modular roof panel in a safe
place when you remove it to prevent part
damage.
1. Pull and hold the spring-loaded slide.
2. Turn the L-shaped latch.
3. Repeat steps 1 and 2 on the other latch
to unlock the modular roof panel from
the roof.
4. Push up on the front of the panel.
5. Slide the panel forward to remove it
from your vehicle.
6. To install, reverse the removal
procedure.
