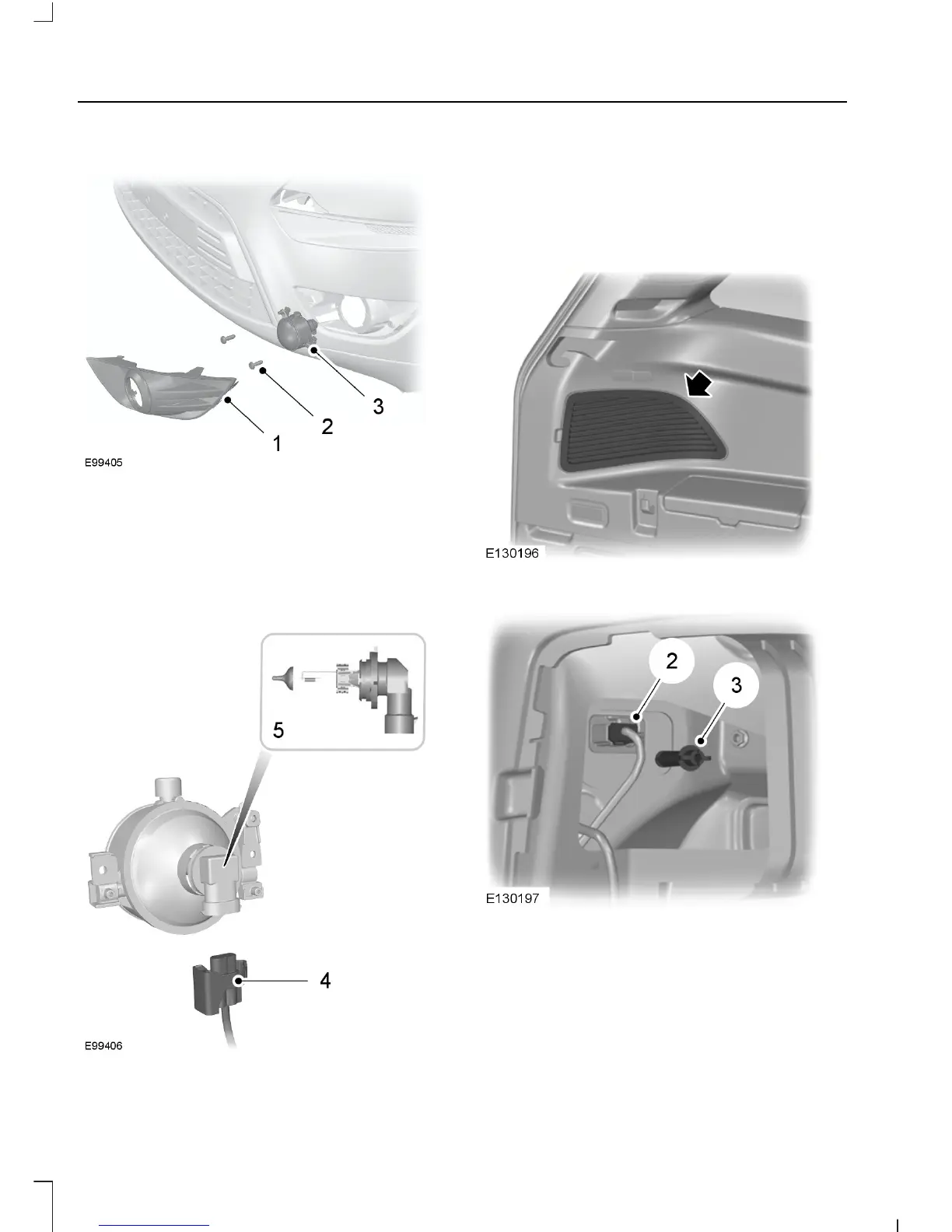

Front fog lamps

Note: You cannot separate the fog lamp

bulb from the bulb holder.

1. Using a suitable implement, remove

the cover.

2. Remove the screws.

3. Remove the lamp.

4. Disconnect the electrical connector.

5. Turn the bulb holder counterclockwise

and remove it.

Rear lamps

Direction indicator, tail and brake lamp

1. Remove the trim panel.

2. Disconnect the electrical connector.

3. Remove the wing nut.

4. Remove the lamp.

C-MAX (CB7)

Lighting

Default Chapter3
