Type 2

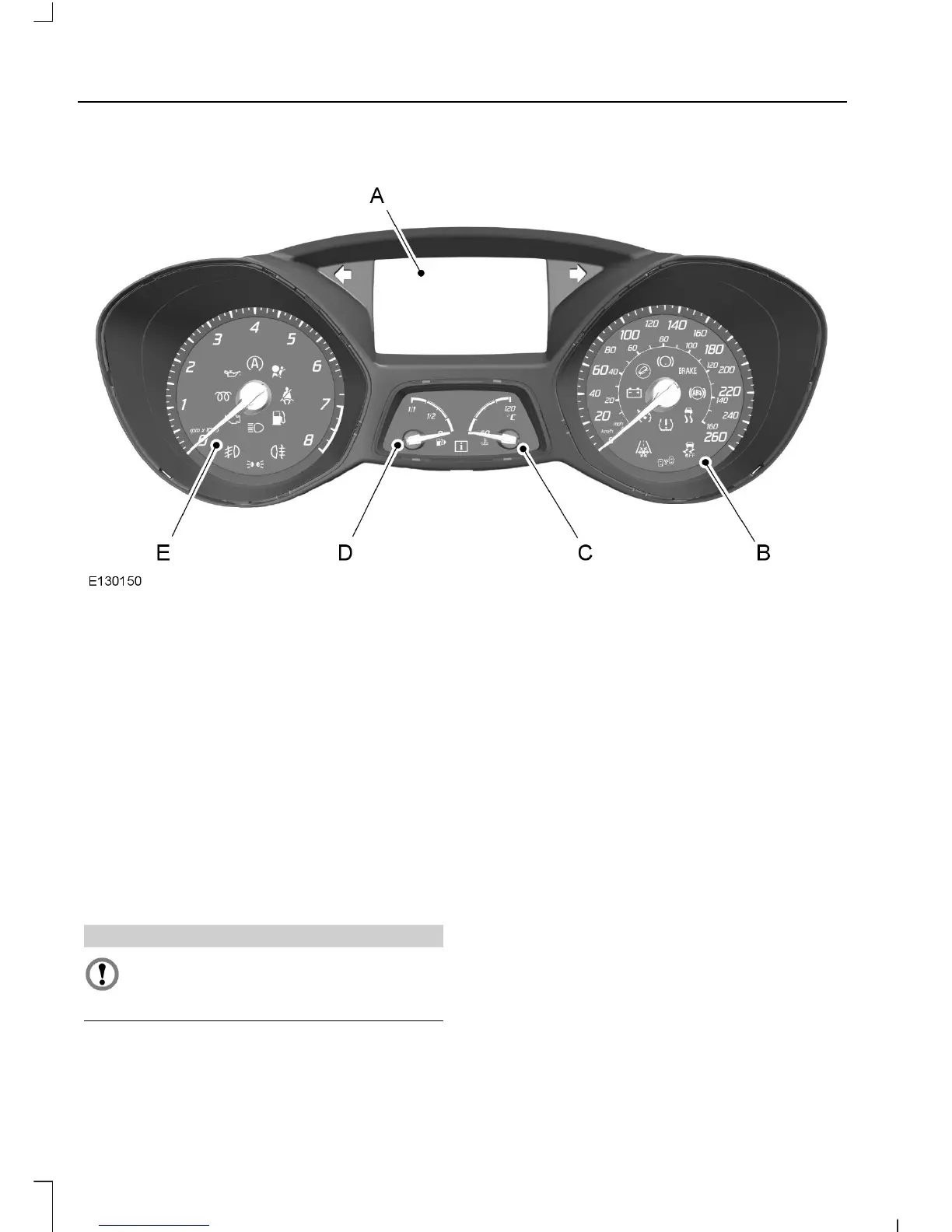

Information display. See Information Displays (page 81).A
SpeedometerB
Engine coolant temperature gaugeC
Fuel gaugeD
TachometerE
Engine coolant temperature gauge
All vehicles
Shows the temperature of the engine
coolant. At normal operating temperature,
the needle will remain in the center section.
CAUTION
Do not restart the engine until the
cause of overheating has been
resolved.
If the needle enters the red section, the
engine is overheating. Stop the engine,
switch the ignition off and determine the
cause once the engine has cooled down.
See Engine Coolant Check (page 195).
Fuel gauge
The arrow adjacent to the fuel pump
symbol indicates on which side of the
vehicle the fuel filler cap is located.
76
C-MAX (CB7)
Instrument Cluster
